LM5041A Texas instruments

LM5041A

Уточнить цену

LM5041A

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

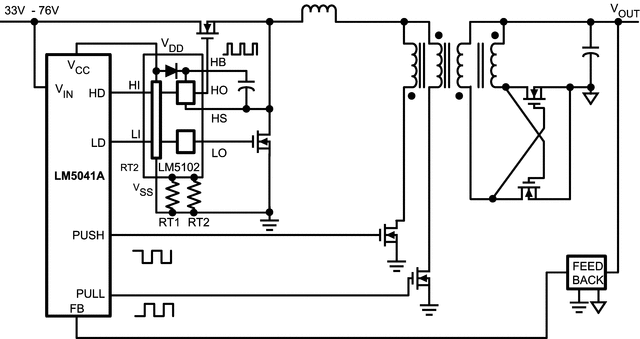

The LM5041A PWM controller contains all of the features necessary to implement either current-fed or voltage-fed push-pull or bridge power converters. These “Cascaded” topologies are well suited for multiple output and higher power applications. The LM5041A’s four control outputs include: the buck stage controls (HD and LD) and the push-pull control outputs (PUSH and PULL). Push-pull outputs are driven at 50% nominal duty cycle at one half of the switching frequency of the buck stage and can be configured for either an overlap time (for current-fed applications) or a both-off time (for voltage-fed applications). Push-pull stage MOSFETs can be driven directly from the internal gate drivers while the buck stage requires an external driver such as the LM5102. The LM5041A includes a high-voltage start-up regulator that operates over a wide input range of 15V to 100V. The PWM controller is designed for high-speed capability including an oscillator frequency range up to 1 MHz and total propagation delays of less than 100ns. Additional features include: line Under-Voltage Lockout (UVLO), soft-start, an error amplifier, precision voltage reference, and thermal shutdown. The two differences between the LM5041 and the LM5041A are: No second level current limit in the 'A' version No softstart (SS) shutdown comparator in the 'A' version.

Internal Start-up Bias Regulator
Programmable Line Under-Voltage Lockout (UVLO) with Adjustable Hysteresis
Current Mode Control
Internal Error Amplifier with Reference
Cycle-by-cycle Over-Current Protection
Leading Edge Blanking
Programmable Push-Pull Overlap or Dead Time
Internal 1.5A Push-Pull Gate Drivers
Programmable Soft-Start
Programmable Oscillator with Sync Capability
Precision Reference
Thermal Shutdown

All trademarks are the property of their respective owners.

Topology	Push pull
Control mode	Current
Duty cycle (max) (%)	50
Switching frequency (max) (kHz)	1000
Features	Current limiting, Programmable soft start, Synchronization pin
UVLO thresholds on/off (V)	Programmable/2.5V
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Gate drive (typ) (A)	1.5
Vin (max) (V)	15
