Описание

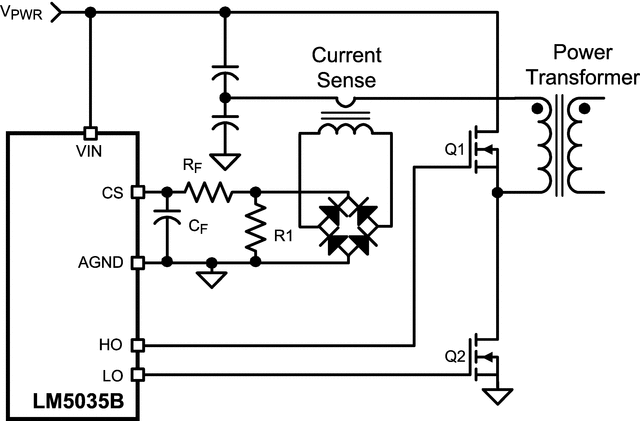

The LM5035B Half-Bridge Controller/Gate Driver contains all of the features necessary to implement half-bridge topology power converters using voltage mode control with line voltage feed-forward. The LM5035B is a functional variant of the LM5035A half-bridge PWM controller. The LM5035B provides higher maximum duty cycle and higher start-up regulator output current than the LM5035A or LM5035. Also, the Synchronous Rectifier drive outputs of the LM5035B are held low in shutdown modes. The LM5035, LM5035A, and LM5035B include a floating high-side gate driver, which is capable of operating with supply voltages up to 105V. Both the high-side and low-side gate drivers are capable of 2A peak. An internal high voltage startup regulator is included, along with programmable line undervoltage lockout (UVLO) and overvoltage protection (OVP). The oscillator is programmed with a single resistor to frequencies up to 2MHz. The oscillator can also be synchronized to an external clock. A current sense input and a programmable timer provide cycle-by-cycle current limit and adjustable hiccup mode overload protection.The differences between LM5035, LM5035A, LM5035B, and LM5035C are summarized in .

105V / 2A Half-Bridge Gate Drivers
Synchronous Rectifier Control Outputs with Programmable Delays
Synchronous Rectifiers Turned Off in Shutdown Modes.
Reduced Deadtime Between High and Low Side Drive for Higher Maximum Duty Cycle.
High Voltage (105V) Start-up Regulator
Voltage mode Control with Line Feed-Forward and Volt Second Limiting
Resistor Programmed, 2MHz Capable Oscillator
Programmable Line Under-Voltage Lockout and Over-Voltage Protection
Internal Thermal Shutdown Protection
Adjustable Soft-Start
Versatile Dual Mode Over-Current Protection with Hiccup Delay Timer
Cycle-by-Cycle Over-Current Protection
Direct Opto-coupler Interface
5V Reference Output

Packages

TSSOP-20
WQFN-24 (4mm x 5mm)

All trademarks are the property of their respective owners.

Topology	Half bridge
Control mode	Feedforward
Duty cycle (max) (%)	50
Switching frequency (max) (kHz)	2000
Features	Current limiting, High-voltage startup, Multi-topology, Pre-bias startup, Synchronization pin
UVLO thresholds on/off (V)	Programmable/1.25V
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Gate drive (typ) (A)	2
Vin (max) (V)	15
