Описание

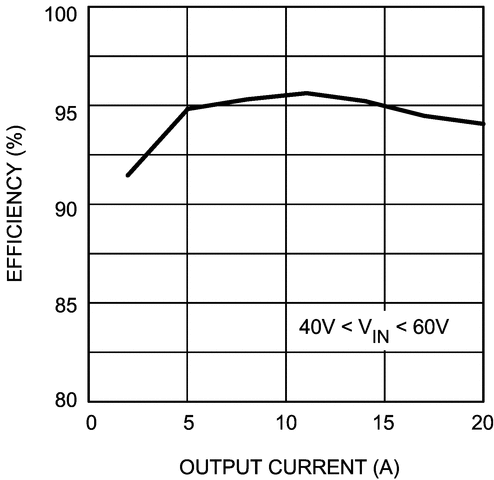

The LM5033 high-voltage PWM controller contains all the features necessary to implement push-pull, half-bridge, and full-bridge topologies. Applications include closed-loop voltage mode converters with a highly regulated output voltage, or open-loop DC transformers such as an Intermediate bus converter (IBC) with an efficiency greater than 95%. Two alternating gate driver outputs with a specified deadtime are provided. The LM5033 includes a start-up regulator that operates over a wide input range from 15 V to 100 V. Additional features include: precision voltage reference output, current limit detection, remote shutdown, soft start, sync capability, and thermal shutdown. This high-speed IC has total propagation delays less than 100 ns and a 1-MHz capable oscillator.

Internal High-Voltage (100 V) Start-Up Regulator
Single Resistor Oscillator Setting
Synchronizable
Precision Reference Output
Adjustable Soft Start
Overcurrent Protection
Direct Optocoupler Interface
1.5-A Peak Gate Drivers
Thermal Shutdown

Topology	Push pull
Control mode	Voltage
Duty cycle (max) (%)	50
Switching frequency (max) (kHz)	1000
Features	Multi-topology, Soft start, Synchronization pin
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Gate drive (typ) (A)	1.5
Vin (max) (V)	15
