Описание

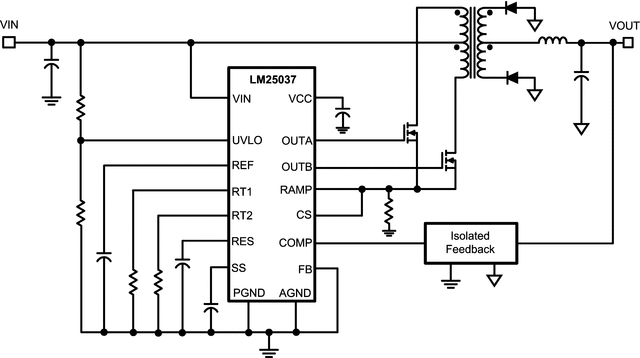

The LM25037 PWM controller contains all the features necessary to implement balanced double-ended power converter topologies, such as push-pull, half-bridge and full-bridge. These double-ended topologies allow for higher efficiencies and greater power densities compared to common single-ended topologies such as the flyback and forward. The LM25037 can be configured for either voltage mode or current mode control with minimum external components. Two alternating gate drive outputs are provided, each capable of 1.2-A peak output current. The LM25037 can be configured to operate directly from the input voltage rail over an ultra-wide range of 5.5 V to 75 V. Additional features include programmable maximum duty cycle limit, line undervoltage lockout, cycle-by-cycle current limit and a hiccup mode fault protection with adjustable timeout delay, soft-start and a 2-MHz capable oscillator with synchronization capability, precision reference and thermal shutdown.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40°C to +125°C Operating Junction Temperature
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
Alternating Outputs for Double-Ended Topologies
Ultra Wide Input Operating Range from 5.5 V to 75 V
Current-Mode or Feed-Forward Voltage-Mode Control
Programmable Maximum Duty Cycle Limit
2% Feedback Reference Accuracy
High Gain-Bandwidth Error Amplifier
Programmable Line Undervoltage Lockout (UVLO) With Adjustable Hysteresis
Versatile Dual Mode Overcurrent Protection With Hiccup Delay Timer
Programmable Soft-Start
Precision 5-V Reference Output
Current Sense Leading Edge Blanking
Resistor Programmed 2-MHz Capable Oscillator
Oscillator Synchronization Capability With Low-Frequency Lockout Protection
16-Pin TSSOP

Topology	Full bridge, Half bridge, Push pull
Control mode	Current
Duty cycle (max) (%)	96
Switching frequency (max) (kHz)	2000
Features	Adjustable switching frequency, Current limiting, High-voltage startup, Multi-topology, Programmable max duty cycle, Programmable soft start, Synchronization pin
UVLO thresholds on/off (V)	Programmable/1.25V
Operating temperature range (°C)	-40 to 125
Rating	Automotive
Gate drive (typ) (A)	1.2
Vin (max) (V)	14
