Описание

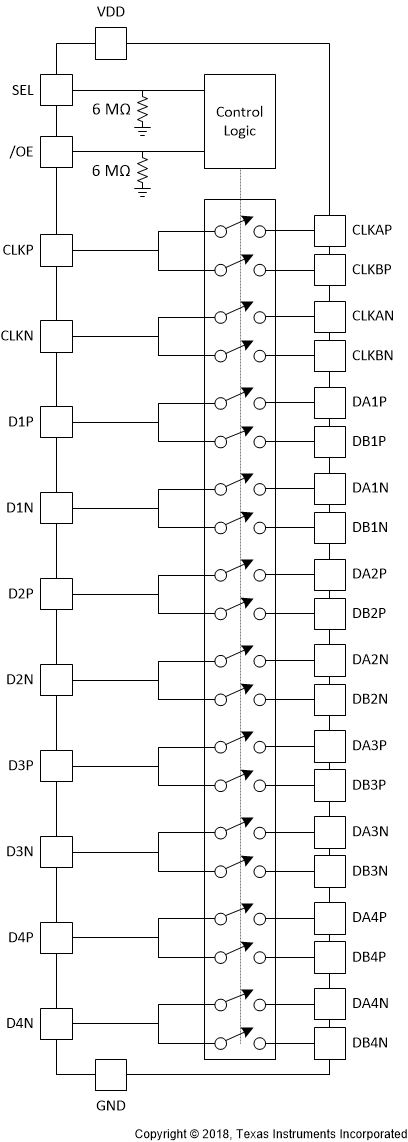

The TS5MP646 is a four data lane MIPI switch. This device is an optimized 10-channel (5 differential) single-pole, double-throw switch for use in high speed applications. The TS5MP646 is designed to facilitate multiple MIPI compliant devices to connect to a single CSI/DSI, C-PHY/D-PHY module.The device has a bandwidth of 3 GHz, low channel-to-channel skew with little signal degradation, and wide margins to compensate for layout losses. The devices low current consumption meets the needs of low power applications, including mobile phones and other personal electronics.

Supply Range of 1.65 V to 5.5 V
10-Channel 2:1 Switch
Powered-Off Protection:
I/Os Hi-Z when V_DD = 0 V
Low R_ON of 4.2-Ω Typical
Bandwidth of 3 GHz
Ultra Low Crosstalk of -40 dB
Low Power Disable Mode
1.8-V Compatible Logic Inputs
ESD Protection Exceeds JESD 22
- 2000-V Human Body Model (HBM)

Protocols	C-PHY, CSI, D-PHY, DSI, MIPI
Configuration	2:1 SPDT
Number of channels	10
Bandwidth (MHz)	3000
Supply voltage (max) (V)	5.5
Supply voltage (min) (V)	1.65
Ron (typ) (mΩ)	4200
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	3.6
Supply current (typ) (µA)	30
ESD HBM (typ) (kV)	2
Operating temperature range (°C)	-40 to 85
Crosstalk (dB)	-40
ESD CDM (kV)	0.25
Input/output continuous current (max) (mA)	35
COFF (typ) (pF)	1.5
CON (typ) (pF)	1.5
Off isolation (typ) (dB)	-20
OFF-state leakage current (max) (µA)	0.5
Propagation delay time (µs)	0.00004
Ron (max) (mΩ)	9000
Ron channel match (max) (Ω)	0.1
RON flatness (typ) (Ω)	0.1
Turnoff time (disable) (max) (ns)	1000
Turnon time (enable) (max) (ns)	300000
VIH (min) (V)	1.425
VIL (max) (V)	0.5
