Описание

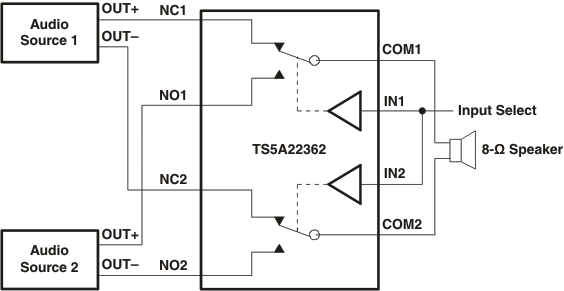

The TS5A22362 is a bidirectional, 2-channel single-pole double-throw (SPDT) analog switch designed to operate from 2.3 V to 5.5 V. The device features negative signal swing capability that allows signals below ground to pass through the switch without distortion. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications. The 3.00 mm × 3.00 mm DRC package is also available as a nonmagnetic package for medical imaging application.

Specified break-before-make switching
Negative signaling capability: maximum swing from –2.75 V to 2.75 V (V_CC = 2.75 V)
Low ON-state resistance (0.65 Ω typical)
Low charge injection
Excellent ON-state resistance matching
2.3-V to 5.5-V Power supply (V_CC)
Latch-Up performance exceeds 100 mA Per JESD 78, Class II
ESD Performance tested per JESD 22
- 2500-V Human-body model
  (A114-B, class II)
- 1500-V Charged-device model (C101)
- 200-V Machine model (A115-A)

Configuration	2:1 SPDT
Features	Supports negative voltages
Supply voltage (min) (V)	2.3
Supply voltage (max) (V)	5.5
Supply current (typ) (µA)	0.2
Operating temperature range (°C)	-40 to 85
Rating	Catalog
