Описание

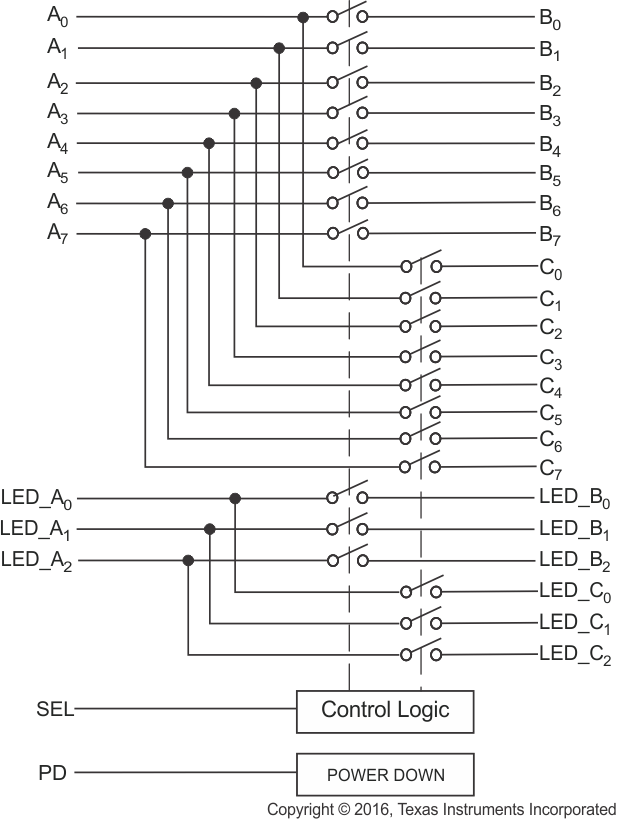

The TS3L501E is a 11-channel SPDT analog switch or 22-bit to 11-bit multiplexer or demultiplexer LAN switch with a single select (SEL) input and Power-Down Mode input. The device provides additional I/Os for switching status indicating LED signals and includes high ESD protection. SEL input controls the data path of the multiplexer or demultiplexer. Power-down input can put the device into the standby mode for minimizing current consumption per mode selection.The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match. Low input or output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T. This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T Ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations.It is characterized for operation over the free-air temperature range of –40°C to 85°C.

Integrated power-down mode
Wide bandwidth (BW = 600 MHz typical)
Low crosstalk (X_TALK = –37 dB typical at 250 MHz)
Low bit-to-bit skew (t_sk(o) = 100 ps maximum)
Low and Flat ON-State Resistance (r_on = 4 Ω typical, r_on(flat) = 0.5 Ω typical)
Low input and output capacitance (C_ON = 9 pF typical)
Rail-to-rail switching on data I/O ports (0 V to 3.6 V)
V_CC operating range from: 3 V to 3.6 V
Support power-down mode
Latch-up performance exceeds 100 mA per JESD 78, class II
ESD performance (A, B, C, and LED pins)
- ±4-kV IEC61000-4-2, Contact Discharge
- 6-kV Human Body Model per JESD22-A114E (switch I/O pins to GND)
ESD performance (all pins)
- 2-kV Human Body Model per JESD22-A114E

Protocols	10 BASE-T, 100 BASE-T, 1000 BASE-T, LAN, LVDS
Configuration	2:1 SPDT
Number of channels	11
Bandwidth (MHz)	600
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Ron (typ) (mΩ)	4000
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	3.6
Supply current (typ) (µA)	250
ESD HBM (typ) (kV)	6
Operating temperature range (°C)	-40 to 85
Crosstalk (dB)	-37
ESD CDM (kV)	4
Input/output continuous current (max) (mA)	128
COFF (typ) (pF)	3
CON (typ) (pF)	9
Off isolation (typ) (dB)	-37
OFF-state leakage current (max) (µA)	1
Propagation delay time (µs)	0.0003
Ron (max) (mΩ)	8000
Ron channel match (max) (Ω)	1.5
RON flatness (typ) (Ω)	0.7
Turnoff time (disable) (max) (ns)	0.9
Turnon time (enable) (max) (ns)	0.5
VIH (min) (V)	2
VIL (max) (V)	0.8
