Описание

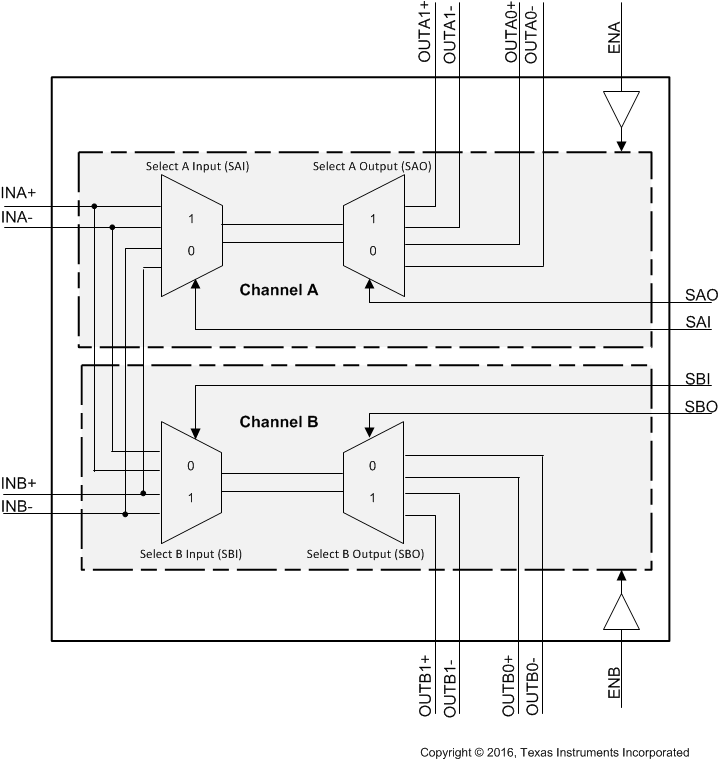

The TS3DS10224 device is a bidirectional differential crosspoint, 1:4, or 1:2 multiplexer and demultiplexer; or fan-out switch for high-speed differential signal applications (up to 720 Mbps). The TS3DS10224 logic table can route any input to any output creating a wide range of possible switching or multiplexing configurations. Common configurations include: differential crosspoint switching, differential 1:4 mux, or differential 2-channel 1:2 multiplexer and demultiplexer. The TS3DS10224 offers a high BW of 1.2 GHz with channel RON of 13 Ω (typical). The TS3DS10224 can also be used to fan out a differential signal pair to two ports simultaneously (fan-out configuration). The BW performance is lower in this configuration.The TS3DS10224 operates with a 3-V to 3.6-V power supply. It features ESD protection of up to ±8-kV contact discharge and 2-kV human-body model on its I/O pins.The TS3DS10224 provides fail-safe protection by isolating the I/O pins with high impedance when the power supply (VCC) is not present.

Can be configured for
- Differential Crosspoint Switching
- Differential Single Channel 1:4 Multiplexer and Demultiplexer
- Differential 2-Channel 1:2 Multiplexer and Demultiplexer
- Differential Fan-Out of Signal Pair to Two Ports Simultaneously
Bidirectional Operation
Fail-Safe Protection: I_OFF Protection Prevents Current Leakage in Powered-Down State
(V_CC = 0 V)
High BW (1.2 GHz Typical)
Low R_ON and C_ON:
- 13-Ω R_ON Typical
- 9-pF C_ON Typical
ESD Performance (I/O Pins)
- ±8-kV Contact Discharge (IEC61000-4-2)
- 2-kV Human-Body Model per JESD22-A114E (to GND)
ESD Performance (All Pins)
- 2-kV Human-Body Model per JESD22-A114E
Small WQFN package (3.00 mm × 3.00 mm,
0.4-mm pitch)

Protocols	USB 2.0
Configuration	Crosspoint/exchange
Number of channels	2
Bandwidth (MHz)	1200
Supply voltage (max) (V)	3.6
Supply voltage (min) (V)	3
Ron (typ) (mΩ)	13000
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	3.6
Supply current (typ) (µA)	50
ESD HBM (typ) (kV)	2.5
Operating temperature range (°C)	-40 to 85
Crosstalk (dB)	Yes
ESD CDM (kV)	1
Input/output continuous current (max) (mA)	100
COFF (typ) (pF)	6
CON (typ) (pF)	12
Off isolation (typ) (dB)	-30
OFF-state leakage current (max) (µA)	5
Propagation delay time (µs)	0.00005
Ron (max) (mΩ)	19000
Ron channel match (max) (Ω)	2.5
RON flatness (typ) (Ω)	4
Turnoff time (disable) (max) (ns)	100
Turnon time (enable) (max) (ns)	30
VIH (min) (V)	2.3
VIL (max) (V)	0.6
