Описание

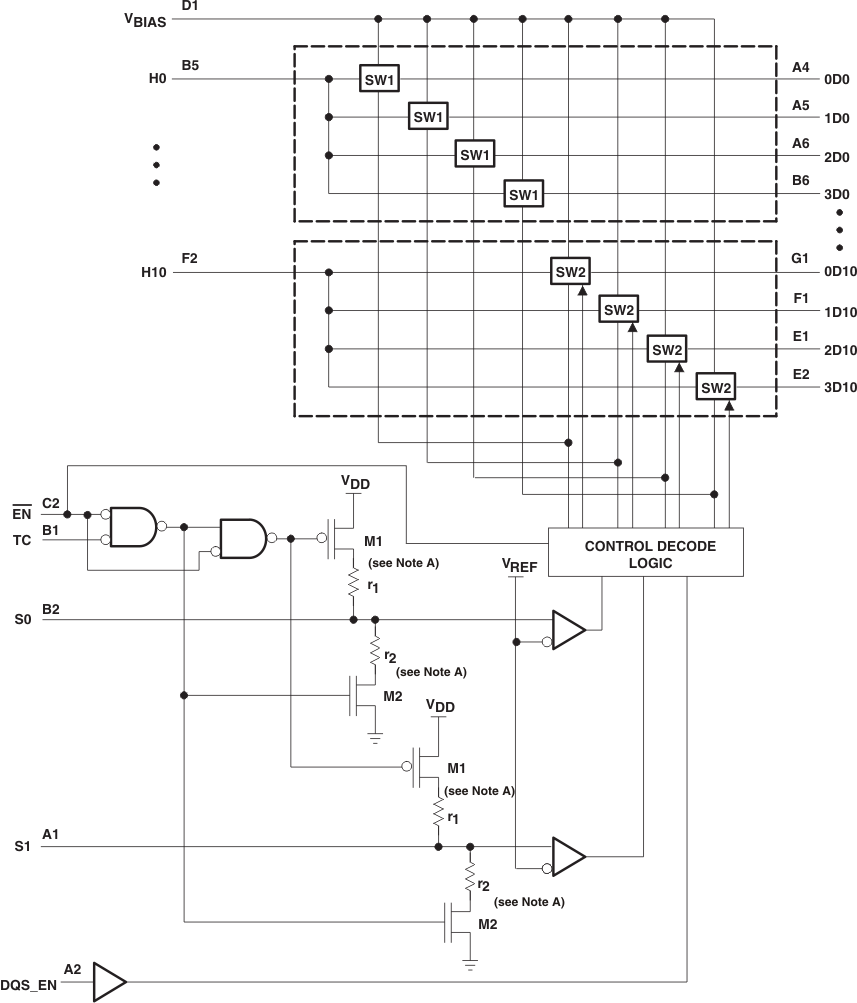

The SN74CBTU4411 device is a high-bandwidth, SSTL_18 compatible FET multiplexer/demultiplexer with low ON-state resistance (ron). The device uses an internal charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ron. The low and flat ron allows for minimal propagation delay and supports rail-to-rail signaling on data input/output (I/O) ports. The device also features very low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Matched ron and I/O capacitance among channels results in extremely low differential and rising or falling edge skew. This allows the device to show optimal performance in DDR-II applications.

Supports SSTL_18 signaling levels
Suitable for DDR-II applications
D-port outputs are precharged by bias voltage (V_BIAS)
Internal termination for control inputs
High bandwidth (400 MHz minimum)
Low and flat ON-state resistance (r_on) characteristics, (r_on = 17 Ω maximum)
Internal 400-Ω pulldown resistors
Low differential and rising or falling edge skew
Latch-up performance exceeds 100 mA per JESD 78, Class II

Protocols	DDR2
Configuration	4:1
Number of channels	11
Bandwidth (MHz)	400
Supply voltage (max) (V)	1.9
Supply voltage (min) (V)	1.7
Ron (typ) (mΩ)	10000
Input/ouput voltage (min) (V)	0
Input/ouput voltage (max) (V)	1.9
Supply current (typ) (µA)	700
ESD HBM (typ) (kV)	2.5
Operating temperature range (°C)	0 to 85
ESD CDM (kV)	0.75
Input/output continuous current (max) (mA)	100
COFF (typ) (pF)	2.5
CON (typ) (pF)	4.6
OFF-state leakage current (max) (µA)	10
Propagation delay time (µs)	0.000297
Ron (max) (mΩ)	17000
RON flatness (typ) (Ω)	1.5
Turnoff time (disable) (max) (ns)	2.1
Turnon time (enable) (max) (ns)	2.1
VIH (min) (V)	1.1
VIL (max) (V)	0.66
