Описание

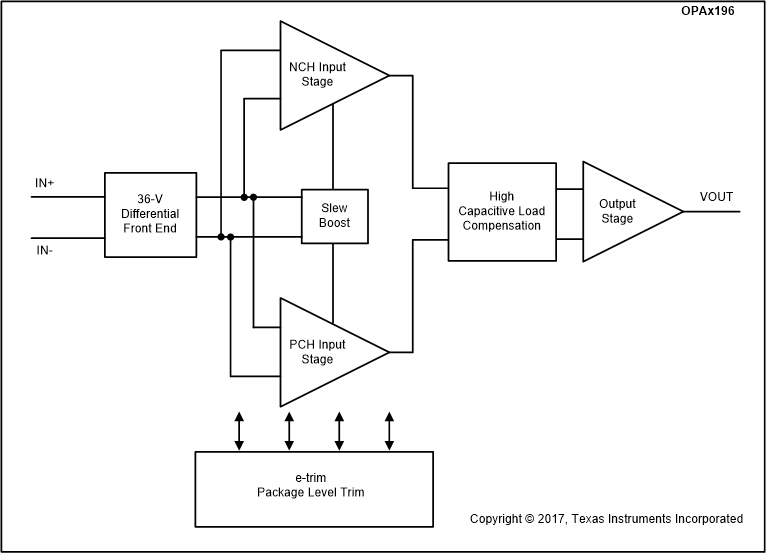

The OPAx196 family (OPA196, OPA2196, and OPA4196) is a new generation of 36-V, rail-to-rail e-trim™ operational amplifiers (op amps).These devices offer very low offset voltage (±25 µV, typical), drift (±0.5 µV/°C, typical), and low bias current (±5 pA, typical) combined with very low quiescent current (140 µA/channel, typical) across the entire output range.Unique features, such as differential input-voltage range to the supply rail, high output current (±65 mA), and high capacitive load drive of up to 1 nF make the OPAx196 a robust, high-performance operational amplifier for high-voltage industrial applications. The OPAx196 family of op amps is available in standard packages and is specified from –40°C to +125°C.

Low Offset Voltage: ±100 µV (maximum)
Low Offset Voltage Drift: ±0.5 µV/°C (typical)
Low Bias Current: ±5 pA (typical)
High Common-Mode Rejection: 140 dB
Low Noise: 15 nV/√Hz at 1 kHz
Rail-to-Rail Input and Output
Differential Input Voltage Range to Supply Rail
Wide Bandwidth: 2.5-MHz GBW
Low Quiescent Current: 140 µA per Amplifier (typical)
Wide Supply: ±2.25 V to ±18 V, 4.5 V to 36 V
EMI/RFI Filtered Inputs
High Capacitive Load Drive Capability: 1 nF
Industry Standard Packages:
- Single in SOIC-8, SOT-5, and VSSOP-8
- Dual in SOIC-8 and VSSOP-8
- Quad in SOIC-14, TSSOP-14, and QFN-16

Number of channels	4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	36
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	4.5
Vos (offset voltage at 25°C) (max) (mV)	0.1
GBW (typ) (MHz)	2.5
Features	EMI Hardened, High Cload Drive
Slew rate (typ) (V/µs)	5.5
Rail-to-rail	In, Out
Offset drift (typ) (µV/°C)	0.5
Iq per channel (typ) (mA)	0.14
Vn at 1 kHz (typ) (nV√Hz)	15
CMRR (typ) (dB)	140
Rating	Catalog
Operating temperature range (°C)	-40 to 125
Input bias current (max) (pA)	20
Iout (typ) (A)	0.065
Architecture	CMOS
Input common mode headroom (to negative supply) (typ) (V)	-0.1
Input common mode headroom (to positive supply) (typ) (V)	0.1
Output swing headroom (to negative supply) (typ) (V)	0.05
Output swing headroom (to positive supply) (typ) (V)	-0.05
THD + N at 1 kHz (typ) (%)	0.0012
