Описание

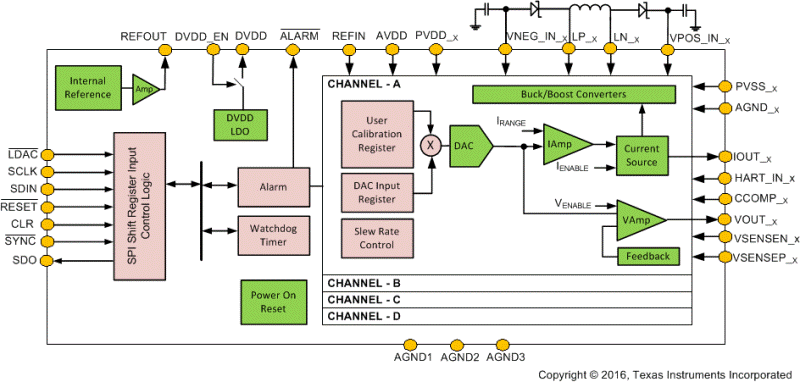

The DAC8775 is a quad-channel precision, fully integrated, 16-bit, digital-to-analog converter (DAC) with adaptive power management, and is designed to meet the requirements of industrial control applications. The adaptive power management circuit, when enabled, minimizes the power dissipation of the chip. When programmed as a current output, the supply voltage on the current output driver is regulated between 4.5 V and 32 V based on continuous feedback of voltage on the current output pin via an integrated buck/boost converter. When programmed as a voltage output, this circuit generates a programmable supply voltage for the voltage output stage (±15 V). DAC8775 also contains an LDO to generate the digital supply (5 V) from a single power supply pin. DAC8775 is also implemented with a Highway Addressable Remote Transducer (HART) Signal Interface to superimpose an external HART signal on the current output. The slew rate of the current output DAC is register programmable. The device can operate with a single external power supply of +12 V to +36 V using the integrated buck/boost converters or with external power supplies when the buck/boost converters are disabled.

Output Current:
- 0 mA to 24 mA; 3.5 mA to 23.5 mA; 0 mA to 20 mA; 4 mA to 20 mA; ±24 mA
Output Voltage (with/without 20% over-range):
- 0 V to 5 V; 0 V to 10 V; ±5 V; ±10 V
- 0 V to 6 V; 0 V to 12 V; ±6 V; ±12 V
Adaptive Power Management
Single Wide Power Supply Pin (12 V – 36 V)
±0.1% FSR Total Unadjusted Error (TUE)
DNL: ±1 LSB Max
Internal 5-V Reference (10 ppm/°C max)
Internal 5-V Digital Power Supply Output
CRC/Frame Error Check, Watchdog Timer
Thermal Alarm, Open/Short Circuit for System Reliability
Safe Actions on Alarm Condition
Auto Learn Load Detection
Wide Temperature Range: –40°C to +125°C

Resolution (Bits)	16
Number of DAC channels	4
Interface type	SPI
Output type	Buffered Current, Buffered Voltage
Settling time (µs)	10
Features	Integrated Buck Boost Converter, Low Power
Reference type	Ext, Int
Architecture	String
Rating	Catalog
Output range (max) (mA/V)	24
Output range (min) (mA/V)	-24
Sample/update rate (Msps)	0.033
Power consumption (typ) (mW)	530
Operating temperature range (°C)	-40 to 125
