Описание

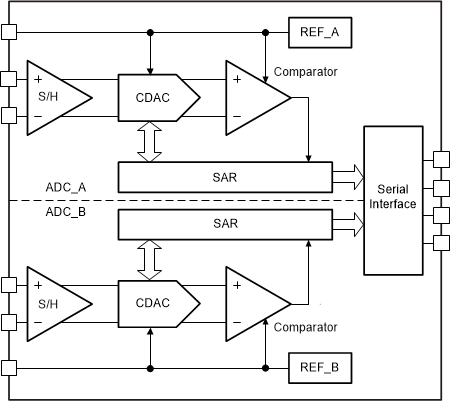

The ADS8353-Q1 is a 16-bit, dual-channel, high-speed, simultaneous-sampling, analog-to-digital converter (ADC) that supports single-ended and pseudo-differential analog inputs.The ADS8353-Q1 includes two individually programmable reference sources that can be used for system-level gain calibration. Also, a flexible serial interface that can operate over a wide power-supply range enables easy communication with a large variety of host controllers. Power consumption for a given throughput can be optimized by using the two low-power modes supported by the device. The ADS8353-Q1 is fully specified over the temperature range (–40°C to +125°C) and is available in a 16-pin TSSOP package.

AEC-Q100 qualified for automotive applications:
- Temperature grade 1: –40°C to +125°C, T_A
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Functional Safety-Capable
- Documentation available to aid functional safety system design
16-bit resolution
Simultaneous sampling of two channels
Supports single-ended and pseudo-differential inputs
Two software-selectable, unipolar input ranges:
- (0 V to V_REF) or (0 V to 2x V_REF)
Up to 600-kSPS sampling speed
Excellent dc performance:
- ±0.6-LSB DNL
- ±1-LSB INL
- ±0.05% gain error
Excellent ac performance:
- 89-dB SNR
- –100-dB THD
Dual, low-drift (10 ppm/°C), programmable 2.5-V internal reference

Resolution (Bits)	16
Sample rate (max) (ksps)	600
Number of input channels	2
Interface type	SPI
Architecture	SAR
Input type	Pseudo-Differential, Single-ended
Multichannel configuration	Simultaneous Sampling
Rating	Automotive
TI functional safety category	Functional Safety-Capable
Reference mode	External, Internal
Input voltage range (max) (V)	5.5
Input voltage range (min) (V)	0
Operating temperature range (°C)	-40 to 125
Power consumption (typ) (mW)	45
Analog supply (min) (V)	4.5
Analog supply voltage (max) (V)	5.5
SNR (dB)	89
Digital supply (min) (V)	1.65
Digital supply (max) (V)	5.5
