Описание

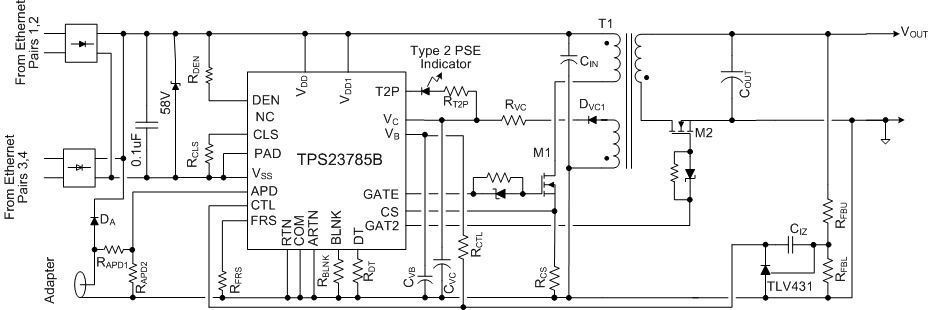

The TPS23785B is a combined Power over Ethernet (PoE) powered device (PD) interface and current-mode DC-to-DC controller optimized specifically for non-isolated converters. The PoE interface supports the IEEE 802.3at standard. The TPS23785B supports a number of input voltage ORing options including highest voltage, external adapter preference, and PoE preference. These features allow the designer to determine which power source will carry the load under all conditions. The PoE interface features the two-event, physical-layer classification necessary for compatibility with high-power midspan power sourcing equipment (PSE) per IEEE 802.3at. The detection signature pin can also be used to force power from the PoE source off. Classification can be programmed to any of the defined types with a single resistor. The DC-to-DC controller features two complementary gate drivers with programmable dead time. This simplifies design for highly-efficient flyback topologies utilizing secondary synchronous rectification. The second gate driver may be disabled if desired for single MOSFET topologies. The controller also features internal softstart, bootstrap startup source, current-mode compensation, and a 78% maximum duty cycle. A programmable and synchronizable oscillator allows design optimization for efficiency and eases use of the controller to upgrade existing power supply designs. Accurate programmable blanking, with a default period, simplifies the usual current-sense filter design trade-offs.

Powers up to 30-W (Input) PDs
DC-to-DC Control Optimized for Non-Isolated Converters
Supports High-Efficiency Topologies
Complete PoE Interface
Enhanced Classification per IEEE 802.3at with Status Flag
Adapter ORing Support
Robust 100-V, 0.5-Ω Hotswap MOSFET
–40°C to 125°C Junction Temperature Range
Industry Standard PowerPAD TSSOP-24

Vin (min) (V)	15.7
Vin (max) (V)	57
PoE current limit (min) (mA)	850
PoE inrush limit (mA) (typ)	140
rDS(on) per FET (typ) (mΩ)	430
PoE standards supported	802.3at Type 1 (802.3af), 802.3at Type 2
PD power level	13W, 25W
DC/DC control	PD and DC/DC
Fault response	Auto Retry
Features	Second Gate Drive, Thermal shutdown
Operating temperature range (°C)	-40 to 125
Rating	Catalog
