Описание

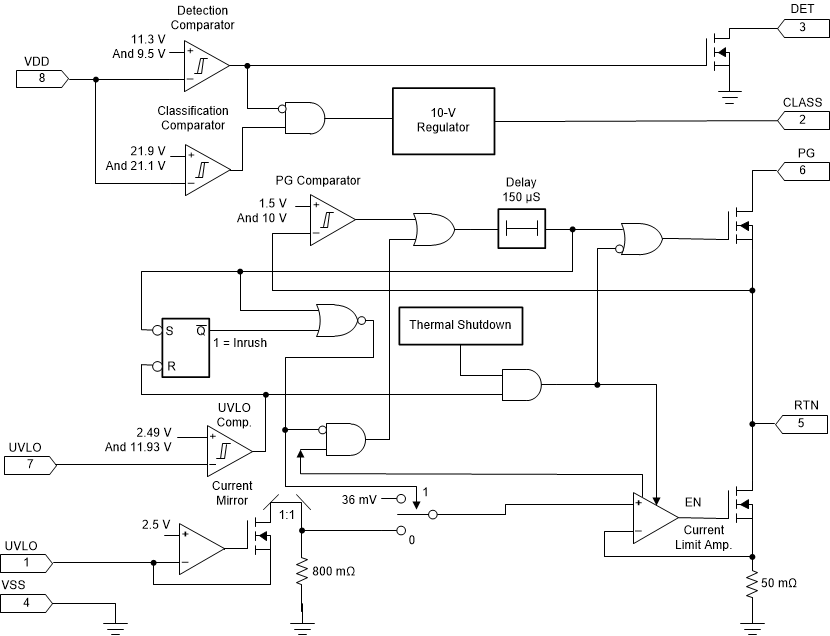

The 8-pin integrated circuit contains all of the features needed to develop a high power IEEE 802.3af style powered device (PD). The TPS2376-H offers a higher current limit and increased thermal dissipation capability over the TPS237X family of devices. The TPS2376-H implements a fully compliant PoE interface while permitting non-standard implementations that draw more power. A 26 W PD may be constructed when working from a 52-V minimum PSE over 100 m of CAT-5 cable. The TPS2376-H features a 100-V rating, 600-mA capability, adjustable inrush limiting, fault protection with auto-retry, and true open-drain power-good functionality.

Adjustable Turn-on Thresholds
Permits High-power 26 W Designs
Integrated 0.58-Ω, 100-V, Low-Side Switch
15-kV System Level ESD Capable
Industrial Temperature Range: –40°C to 85°C
8-Pin PowerPad™ SOIC Package

Vin (min) (V)	0
Vin (max) (V)	57
PoE current limit (min) (mA)	625
PoE inrush limit (mA) (typ)	Programmable
rDS(on) per FET (typ) (mΩ)	580
PoE standards supported	802.3at Type 1 (802.3af)
PD power level	13W, 25W
DC/DC control	PD Only
Fault response	Auto Retry
Features	PG, Programmable UVLO, Thermal shutdown
Operating temperature range (°C)	-40 to 85
Rating	Catalog
