Описание

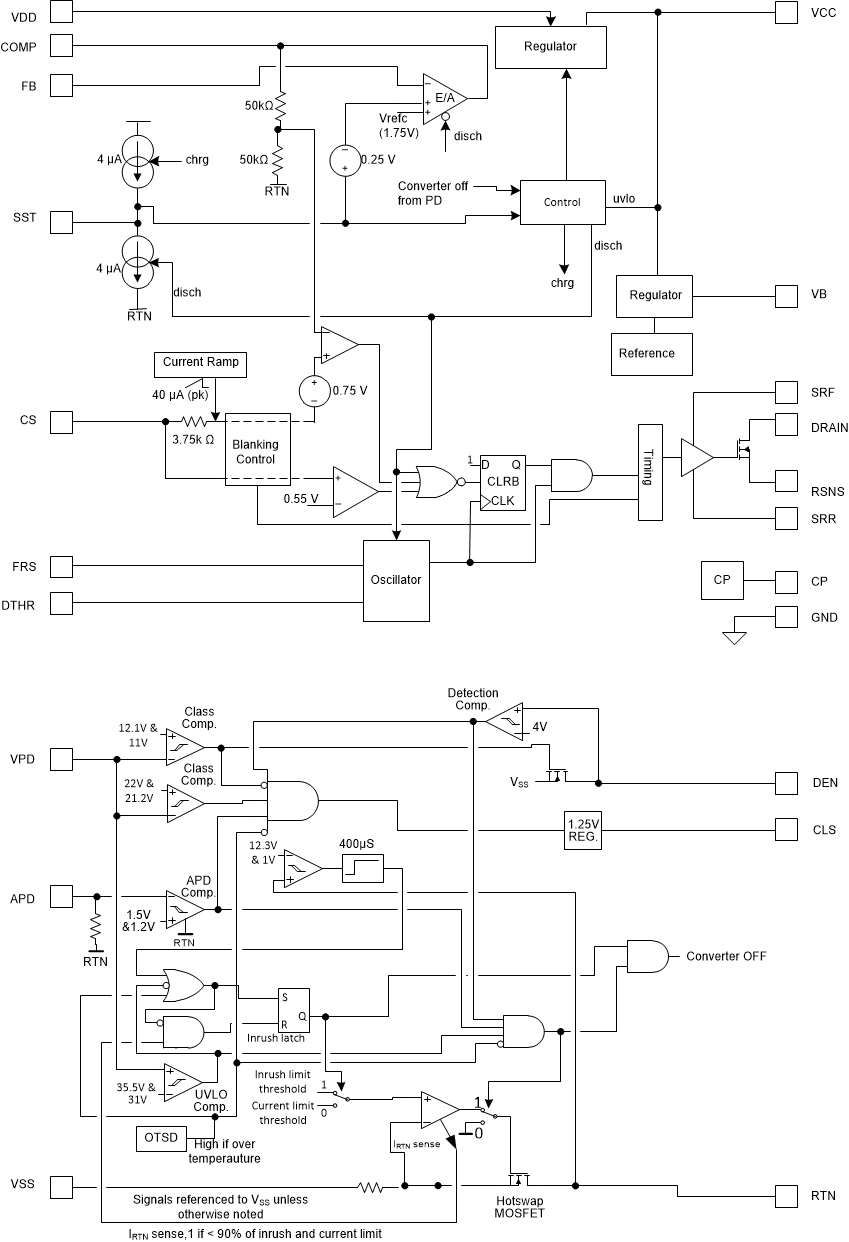

The TPS23758 device combines a Power over Ethernet (PoE) powered device (PD) interface, a 150-V switching power FET, and a current-mode DC-DC controller optimized for flyback topology. The high level of integration along with primary side regulation (PSR), spread spectrum frequency dithering (SSFD), and advanced startup makes the TPS23758 an ideal solution for size-constrained applications. The PoE implementation supports the IEEE 802.3at standard as a 13-W, Type 1 PD.The PSR feature of the DC-DC controller uses feedback from an auxiliary winding for control of the output voltage, eliminating the need for external shunt regulator and optocoupler. It is optimized for operation in continuous conduction mode (CCM) with secondary side synchronous rectification, resulting in optimum overall efficiency, regulation accuracy and step load response over multiple outputs (for example 5-V and 3.3-V output). Typically, the converter operates at a switching frequency of 250 kHz.SFFD and slew rate control helps to minimize the size and cost of the EMI filter. Advanced Startup allows the use of minimal bias capacitor while simplifying converter startup and hiccup design.Primary auxiliary power detect (APD) pin can be used to provide priority for a primary side power adapter.The DC-DC controller features adjustable soft-start, slope compensation, and blanking. For non-isolated applications, the buck topology is also supported by the TPS23758.

Complete IEEE 802.3at PD solution for type 1 PoE
- Ethernet Alliance (EA) logo certified designs available
- Robust 100-V, 0.36-Ω (typ) hotswap MOSFET
Integrated PWM controller with 0.77-Ω (typ) 150-V power MOSFET
- Flyback controller with PSR
  - Supports CCM operation with secondary side synchronous FET— multi-outputs
  - ±1% (typ, 5-V Output) Load regulation (0-100% load range) — with Sync FET
- Supports low-side switch buck topology
- Adjustable switching frequency with synchronization
- Soft-start control with advanced startup
- Programmable slew rate and frequency dithering for enhanced EMI reduction
Primary adapter priority input
–40°C to 125°C Junction temperature range
Small 6-mm x 4-mm VSON package

Vin (min) (V)	10.2
Vin (max) (V)	57
PoE current limit (min) (mA)	405
PoE inrush limit (mA) (typ)	140
rDS(on) per FET (typ) (mΩ)	360
PoE standards supported	802.3at Type 1 (802.3af)
PD power level	13W
DC/DC control	PD and DC/DC
Fault response	Auto Retry
Features	Advanced startup, Error Amplifier, Integrated Switching FET, Primary Side Adapter Priority, Primary-side regulation, Spread Spectrum Frequency Dithering, Thermal shutdown
Operating temperature range (°C)	-40 to 125
Rating	Catalog
