TPS23753A Texas instruments

TPS23753A

Уточнить цену

TPS23753A

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

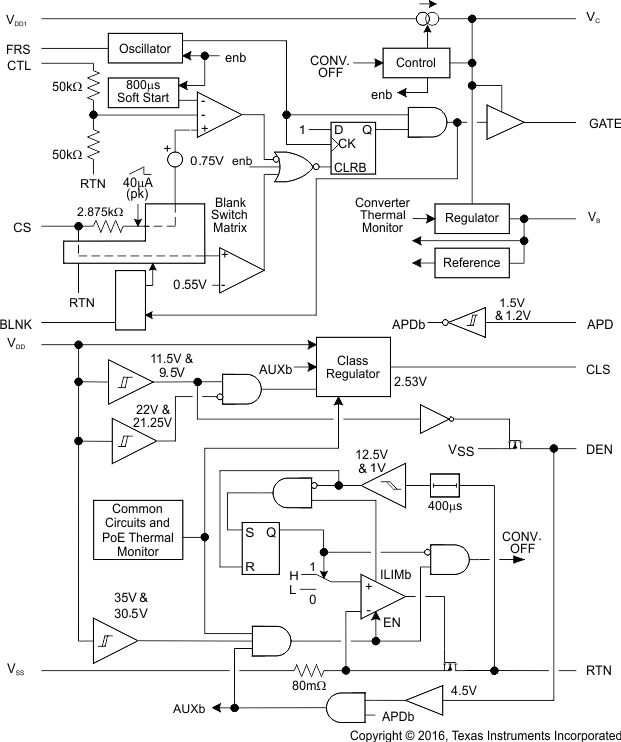

Описание

The TPS23753A is a combined Power over Ethernet (PoE) powered device (PD) interface and current-mode DC-DC controller optimized specifically for isolated converter designs. The PoE implementation supports the IEEE 802.3at standard as a 13-W, type 1 PD. The requirements for an IEEE 802.3at type 1 device are a superset of IEEE 802.3-2008 (originally IEEE 802.3af).The TPS23753A supports a number of input-voltage ORing options including highest voltage, external adapter preference, and PoE preference.The PoE interface features an external detection signature pin that can also be used to disable the internal hotswap MOSFET. This allows the PoE function to be turned off. Classification can be programmed to any of the defined types with a single resistor.The DC-DC controller features a bootstrap start-up mechanism with an internal, switched current source. This provides the advantages of cycling overload fault protection without the constant power loss of a pullup resistor.The programmable oscillator may be synchronized to a higher-frequency external timing reference. The TPS23753A features improvements for uninterrupted device operation through an ESD event.

Enhanced ESD ride-through capability
Optimized for isolated converters
Complete PoE interface
Adapter ORing support
12-V adapter support
Programmable frequency with synchronization
Robust 100-V, 0.7-Ω hotswap MOSFET
Small 14-Pin TSSOP package
15-kV and 8-kV system level ESD capable
–40°C to 125°C junction temperature range
Design procedure application note – SLVA305
Adapter oring application note – SLVA306

Vin (min) (V)	9.3
Vin (max) (V)	57
PoE current limit (min) (mA)	405
PoE inrush limit (mA) (typ)	140
rDS(on) per FET (typ) (mΩ)	700
PoE standards supported	802.3at Type 1 (802.3af)
PD power level	13W
DC/DC control	PD and DC/DC
Fault response	Auto Retry
Features	Primary Side Adapter Priority, Thermal shutdown
Operating temperature range (°C)	-40 to 125
Rating	Catalog
