CSD97376Q4M Texas instruments

CSD97376Q4M

Уточнить цену

CSD97376Q4M

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

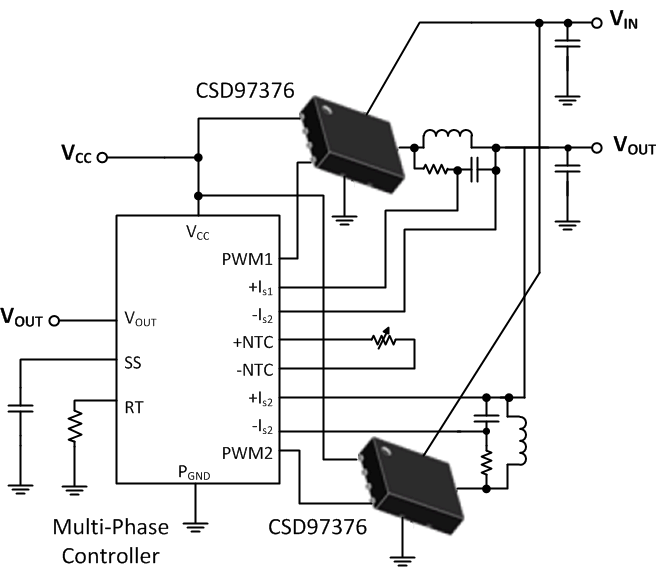

The CSD97376Q4M NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows™ 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces a high-current, high-efficiency, and high-speed switching device in a small 3.5-mm × 4.5-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

90% System Efficiency at 15 A
Max Rated Continuous Current 20 A, Peak 45 A
High-Frequency Operation (up to 2 MHz)
High-Density SON 3.5-mm x 4.5-mm Footprint
Ultra-Low Inductance Package
System Optimized PCB Footprint
Ultra-Low Quiescent (ULQ) Current Mode
3.3-V and 5-V PWM Signal Compatible
Diode Emulation Mode with FCCM
Input Voltages up to 24 V
Tri-State PWM Input
Integrated Bootstrap Diode
Shoot-Through Protection
RoHS Compliant – Lead-Free Terminal Plating
Halogen Free

VDS (V)	30
Power loss (W)	2.2
Ploss current (A)	12
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	20
Operating temperature range (°C)	-40 to 150
Features	Ultra-low inductance package
Rating	Catalog
