Описание

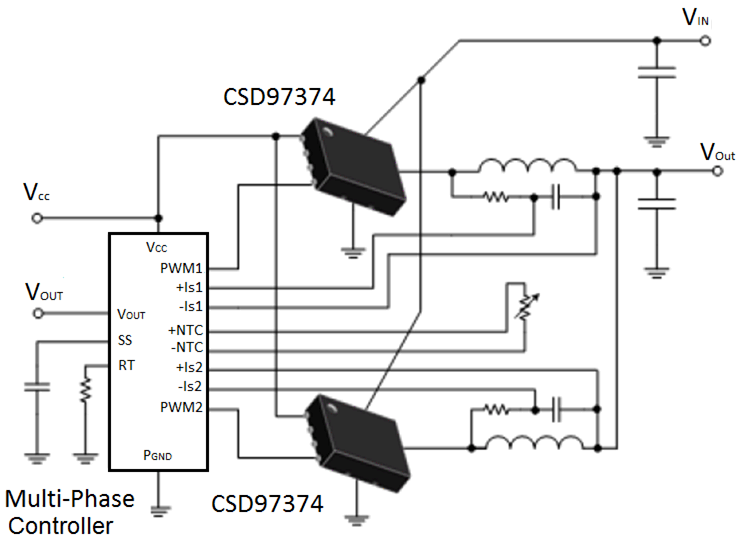

The CSD97374Q4M NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces a high-current, high-efficiency, and high-speed switching device in a small 3.5-mm × 4.5-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

Over 92% System Efficiency at 15 A
Max Rated Continuous Current 25 A, Peak 60 A
High-Frequency Operation (up to 2 MHz)
High-Density SON 3.5-mm × 4.5-mm Footprint
Ultra-Low Inductance Package
System Optimized PCB Footprint
Ultra-Low Quiescent (ULQ) Current Mode
3.3-V and 5-V PWM Signal Compatible
Diode Emulation Mode with FCCM
Input Voltages up to 24 V
Tri-State PWM Input
Integrated Bootstrap Diode
Shoot-Through Protection
RoHS Compliant – Lead-Free Terminal Plating
Halogen Free

VDS (V)	30
Power loss (W)	2.3
Ploss current (A)	15
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	25
Operating temperature range (°C)	-40 to 150
Features	Ultra-low inductance package
Rating	Catalog
