Описание

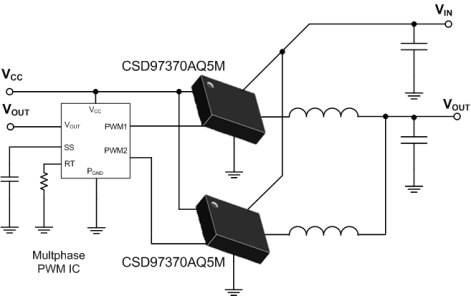

The CSD97370AQ5M NexFET Power Stage is an optimized design for use in a high power, high density Synchronous Buck converter. This product integrates an enhanced gate driver IC and Power Block Technology to complete the power stage switching function. This combination produces a high current, high efficiency, high speed switching device and delivers an excellent thermal solution in a small 5-mm × 6-mm outline package due to its large ground based thermal pad. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

90% System Efficiency at 25A
Input Voltages up to 22V
High Frequency Operation (Up To 2MHz)
Incorporates Power Block Technology
High Density – SON 5-mm × 6-mm Footprint
Low Power Loss 2.8W at 25A
Ultra Low Inductance Package
System Optimized PCB Footprint
Universal 5V PWM Signal Compatibility
3-State PWM Input
Integrated Bootstrap Diode
Pre-Bias Start-Up Protection
Shoot Through Protection
RoHS Compliant – Lead Free Terminal Plating Halogen Free

VDS (V)	30
Power loss (W)	2.8
Ploss current (A)	25
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	40
Operating temperature range (°C)	-55 to 150
Features	Ultra-low inductance package
Rating	Catalog
