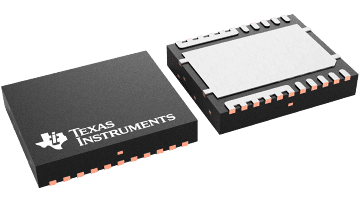

CSD96497Q5MC Texas instruments

CSD96497Q5MC

Уточнить цену

CSD96497Q5MC

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

The CSD96497 NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

65-A continuous operating current capability
Over 93.5% system efficiency at 30 A
High-frequency operation (up to 1.25 MHz)
Diode emulation mode with FCCM
Temperature compensated bi-directional current sense
Analog temperature output
Fault monitoring - OTP, HS OCP, and short circuit protection
3.3-V and 5-V PWM signal compatible
Tri-state PWM input
Integrated bootstrap switch
Optimized dead time for shoot-through protection
High-density QFN 5-mm × 6-mm Footprint
Ultra-low-inductance package
System optimized PCB footprint
DualCool™ packaging
RoHS compliant, lead-free terminal plating
Halogen free

VDS (V)	25
Power loss (W)	2.8
Ploss current (A)	30
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	65
Operating temperature range (°C)	-55 to 150
Features	Analog temperature output, Diode emulation mode with FCCM, DualCool, Integrated current sense, Ultra-low inductance package
Rating	Catalog
