Описание

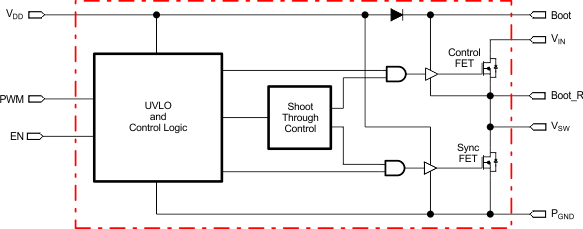

The CSD96371Q5M NexFET Power Stage has an optimized design for use in a high power high density Synchronous Buck converter. This product integrates the gate driver IC and Power MOSFETs to complete the power stage switching function. This combination produces high current, high efficiency, and high speed switching capability in a small 5-mm × 6-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

92% System Efficiency at 30A
High Frequency Operation (Up To 2MHz)
High Density – SON 5-mm × 6-mm Footprint
Low Power Loss 3.4W at 30A
Ultra Low Inductance Package
System Optimized PCB Footprint
3.3V and 5V PWM Signal Compatible
3-State PWM Input
Integrated Bootstrap Diode
Pre-Bias Start-Up Protection
Shoot Through Protection
RoHS Compliant – Lead Free Terminal Plating Halogen Free

VDS (V)	25
Power loss (W)	2.4
Ploss current (A)	25
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	50
Operating temperature range (°C)	-55 to 150
Features	Ultra-low inductance package
Rating	Catalog
