Описание

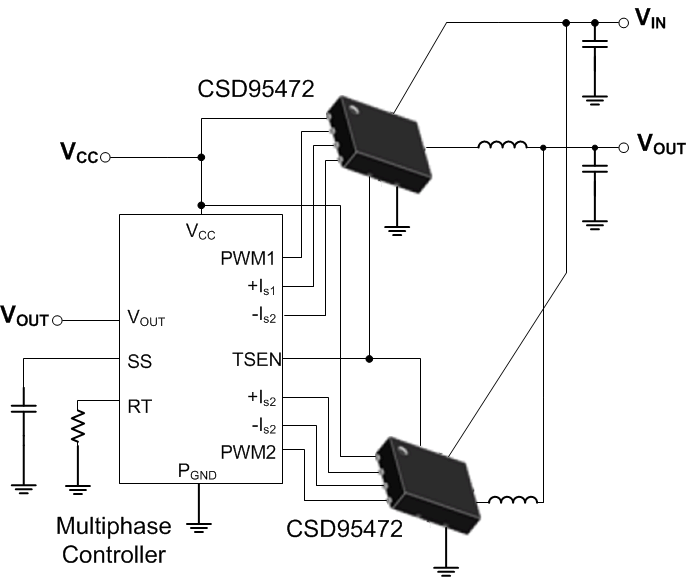

The CSD95472Q5MC NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and Power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5 mm × 6 mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

60-A Continuous Operating Current Capability
94.4% System Efficiency at 1.2 V / 30 A
Low Power Loss of 2.3 W at 30 A
High-Frequency Operation (up to 1.25 MHz)
Diode Emulation Mode With FCCM
Temperature-Compensated Bidirectional Current
Sense
Analog Temperature Output (600 mV at 0°C)
Fault Monitoring
- High-Side Short, Overcurrent, and
  Overtemperature Protection
3.3-V and 5-V PWM Signal Compatible
Tri-State PWM Input
Integrated Bootstrap Diode
Optimized Deadtime for Shoot-Through Protection
High-Density SON 5 × 6 mm Footprint
Ultralow Inductance Package
System-Optimized PCB Footprint
DualCool™ Packaging
RoHS Compliant – Lead-Free Terminal Plating
Halogen Free

VDS (V)	20
Power loss (W)	2.3
Ploss current (A)	30
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	60
Operating temperature range (°C)	-55 to 150
Features	Analog temperature output, Diode emulation mode with FCCM, DualCool, Integrated current sense, Ultra-low inductance package
Rating	Catalog
