Описание

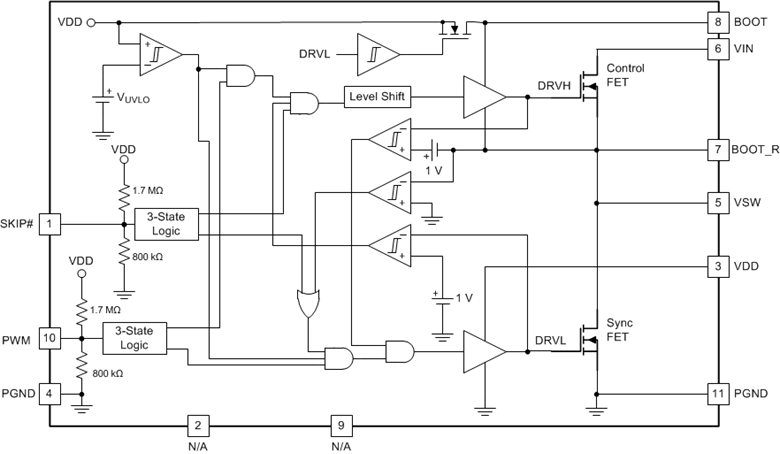

The CSD95379Q3M NexFET™ power stage is a highly optimized design for use in high-power, high-density synchronous buck converters. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows® 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces high-current, high-efficiency, and high-speed switching capability in a small 3.3-mm × 3.3-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

92.5% System Efficiency at 12 A
Ultra-Low Power Loss of 1.8 W at 12 A
Max Rated Continuous Current of 20 A and Peak Current of 45 A
High-Frequency Operation (up to 2 MHz)
High-Density SON 3.3-mm × 3.3-mm Footprint
Ultra-Low Inductance Package
System Optimized PCB Footprint
Low Quiescent (LQ) and Ultra-Low Quiescent (ULQ) Current Mode
3.3-V and 5-V PWM Signal Compatible
Diode Emulation Mode with FCCM
Tri-State PWM Input
Integrated Bootstrap Diode
Shoot-Through Protection
RoHS Compliant – Lead-Free Terminal Plating
Halogen Free

VDS (V)	20
Power loss (W)	1.8
Ploss current (A)	12
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	20
Operating temperature range (°C)	-40 to 150
Features	Diode emulation mode with FCCM, Ultra-low inductance package
Rating	Catalog
