CSD95377Q4M Texas instruments

CSD95377Q4M

Уточнить цену

CSD95377Q4M

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

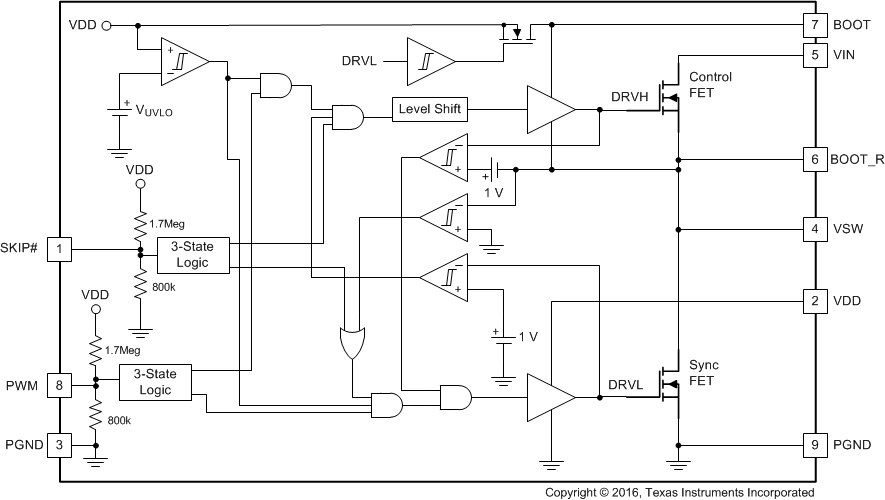

The CSD95377Q4M NexFET™ power stage is a highly-optimized design for use in a high power, high density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. The driver IC has built-in selectable diode emulation function enables Discontinuous Conduction Mode (DCM) operation to improve light load efficiency. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 3.5 mm × 4.5 mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

Above 94% System Efficiency at 15 A
Max Rated Continuous Current 35 A
High-Frequency Operation (up to 2 MHz)
High-Density SON 3.5-mm × 4.5-mm Footprint
Ultra-Low Inductance Package
System-Optimized PCB Footprint
3.3-V and 5-V PWM Signal Compatible
Diode Emulation Mode With Forced Continuous Conduction Mode (FCCM)
Input Voltages to 16 V
Tri-State PWM Input
Integrated Bootstrap Diode
Shoot-Through Protection
RoHS Compliant – Lead Free Terminal Plating
Halogen Free

VDS (V)	20
Power loss (W)	1.6
Ploss current (A)	15
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	35
Operating temperature range (°C)	-40 to 150
Features	Diode emulation mode with FCCM, Ultra-low inductance package
Rating	Catalog
