Описание

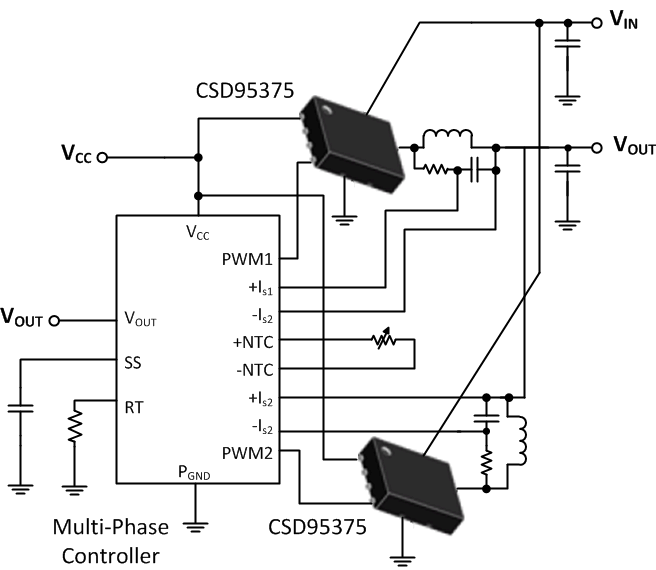

The CSD95375Q4M NexFET™ Power Stage is a highly optimized design for use in a high power, high density Synchronous Buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables Connected Standby for Windows™ 8. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8 µA (typically 20 µs is required to resume switching). This combination produces a high current, high efficiency, and high speed switching device in a small 3.5 × 4.5-mm outline package. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

93% System Efficiency at 15 A
Max Rated Continuous Current 25 A,
Peak 60 A
High Frequency Operation (up to 2 MHz)
High Density - SON 3.5 × 4.5-mm
Footprint
Ultra-Low Inductance Package
System Optimized PCB Footprint
Ultra-Low Quiescent (ULQ) Current Mode
3.3 V and 5 V PWM Signal Compatible
Diode Emulation Mode with FCCM
Tri-State PWM Input
Integrated Bootstrap Diode
Shoot Through Protection
RoHS Compliant – Lead-Free Terminal
Plating
Halogen Free

VDS (V)	20
Power loss (W)	2.2
Ploss current (A)	15
Configuration	PowerStage
ID - continuous drain current at TA=25°C (A)	25
Operating temperature range (°C)	-40 to 150
Features	Diode emulation mode with FCCM, Ultra-low inductance package
Rating	Catalog
