Описание

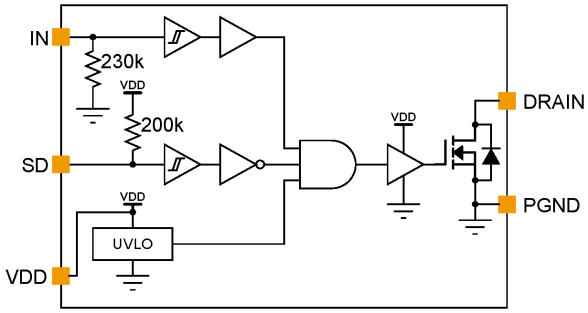

The CSD43301Q5M NexFET Smart Synchronous Rectifier is a highly optimized design for secondary synchronous rectification in a high power high density DC/DC converter. This product integrates the driver IC and an ultra low Ron Power MOSFET to complete the synchronous rectification function. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

Typical R_on of 0.55 mΩ at 4.5 V_DD
Integrated FET Driver
Max Rated Current 80A
High Density – SON 5-mm × 6-mm Footprint
Ultra Low Inductance Package
System Optimized PCB Footprint
TTL IN signal Compatible
Halogen Free
RoHS Compliant – Lead Free Terminal
Plating Halogen Free

VDS (V)	12
Power loss (W)	0.88
Ploss current (A)	40
Configuration	PowerBlock
ID - continuous drain current at TA=25°C (A)	80
Operating temperature range (°C)	-55 to 125
Features	Powerstack vertical FET integration
Rating	Catalog
