Описание

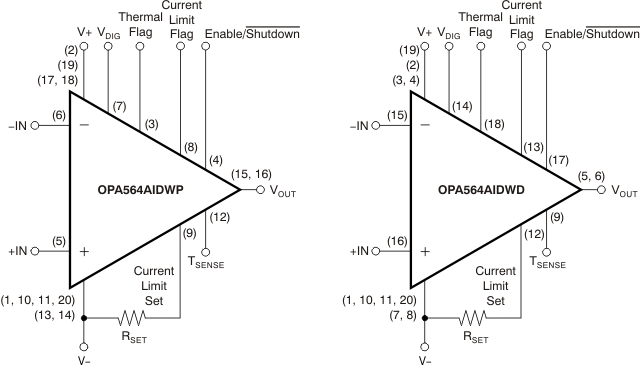

The OPA564-Q1 is a low-cost, high-current operational amplifier that is ideal for driving up to 1.5A into reactive loads. The high slew rate provides 1.3MHz full-power bandwidth and excellent linearity. These monolithic integrated circuits provide high reliability in demanding powerline communications and motor control applications. The OPA564-Q1 operates from a single supply of 7V to 24V, or dual power supplies of ±3.5V to ±12V. In single-supply operation, the input common-mode range extends to the negative supply. At maximum output current, a wide output swing provides a 20VPP (IOUT = 1.5A) capability with a nominal 24V supply. The OPA564-Q1 is internally protected against over-temperature conditions and current overloads. It is designed to provide an accurate, user-selected current limit. Two flag outputs are provided; one indicates current limit and the second shows a thermal over-temperature condition. It also has an Enable/Shutdown pin that can be forced low to shut down the output, effectively disconnecting the load. The OPA564-Q1 is housed in a thermally-enhanced, surface-mount PowerPAD™ package (HSOP-20) with the choice of the thermal pad on either the top side or the bottom side of the package.

Qualified for Automotive Applications
High Output Current: 1.5A
Wide Power-Supply Range:
- Single Supply: +7V to +24V
- Dual Supply: ±3.5V to ±12V
Large Output Swing: 20V_PP at 1.5A
Fully Protected:
- Thermal Shutdown
- Adjustable Current Limit
Diagnostic Flags:
- Over-Current
- Thermal Shutdown
Output ENABLE/SHUTDOWN Control
High Speed:
- Gain-Bandwidth Product: 17MHz
- Full-Power Bandwidth at 10V_PP: 1.3MHz
- Slew Rate: 40V/µs
Diode for Junction Temperature Monitoring
HSOP-20 PowerPAD Package
(Bottom- and Top-Side Thermal Pad Versions)
APPLICATIONS
- Powerline Communications
- Valve, Actuator Driver
- V_COM Driver
- Motor Driver
- Audio Power Amplifier
- Power-Supply Output Amplifier
- Test Equipment Amplifier
- Transducer Excitation
- Laser Diode Driver
- General-Purpose Linear Power Booster

All trademarks are the property of their respective owners.

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	7
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	24
Iout (typ) (A)	1.5
GBW (typ) (MHz)	17
Slew rate (typ) (V/µs)	40
Vos (offset voltage at 25°C) (max) (mV)	20
Offset drift (typ) (V/°C)	0.00001
Iq per channel (typ) (mA)	39
Features	Adj Current Limit, Shutdown
Rating	Automotive
Operating temperature range (°C)	-40 to 125
Input bias current (max) (pA)	100
CMRR (typ) (dB)	80
Rail-to-rail	In to V-
Architecture	FET
