Описание

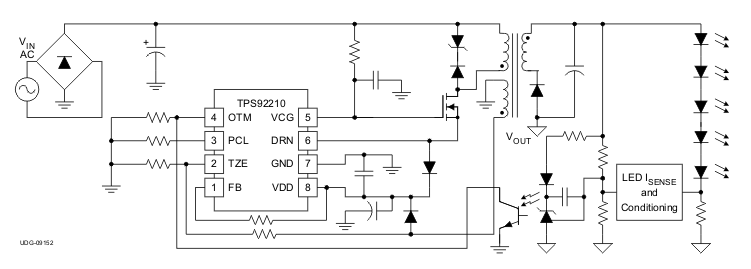

The TPS92210 is a natural power factor correction (PFC) light emmitting diode (LED) lighting driver controller with advanced energy features to provide high efficiency control for LED lighting applications. A PWM modulation algorithm varies both the switching frequency and primary current while maintaining discontinuous or transition mode operation in all regions of operation. The TPS92210 cascode architecture enables low switching loss in the primary side and when combined with the discontinuous conduction mode (DCM) operation ensures that there is no reverse recovery loss in the output rectifier. These innovations result in efficiency, reliability or system cost improvements over a conventional flyback architecture. The TPS92210 offers a predictable maximum power threshold and a timed response to an overload, allowing safe handling of surge power requirements. The overload fault response is user-programmed for retry or latch mode. Additional protection features include open-LED detection by output overvoltage protection and thermal shutdown. The TPS92210 is offered in the 8-pin SOIC (D) package. Operating junction temperature range is –40°C to 125°C

Flexible Operation Modes
- Constant On-Time Enables Single Stage PFC Implementation
- Peak Primary Current
Cascoded MOSFET Configuration
- Fully Integrated Current Control Without Sense Resistor
- Fast and Easy Startup
Discontinuous Conduction Mode or Transition Mode Operation
Transformer Zero Energy Detection
- Enables Valley Switching Operation
- Helps to Achieve High Efficiency and Low EMI
Open LED Detection
Advanced Overcurrent Protection
Output Overvoltage Protection
Line Surge Ruggedness
Internal Over-Temperature Protection
8-Pin SOIC (D) Package

Topology	Buck, Flyback
Control mode	Current
Switching frequency (max) (kHz)	133
UVLO thresholds on/off (V)	10.2/8
Vin (max) (V)	20
Features	Peak current mode, Transition Control Mode
Rating	Catalog
Operating temperature range (°C)	-40 to 125
Duty cycle (max) (%)	2
