Описание

The CSD87588N NexFET™ power block II is a highly-optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver.

Half-Bridge Power Block
90% System Efficiency at 20 A
Up to 25 A Operation

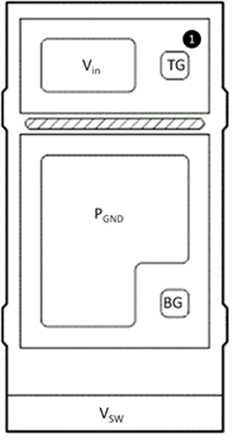

High Density – 5 mm × 2.5 mm LGA Footprint
Double Side Cooling Capability
Ultra-Low Profile – 0.48 mm Max
Optimized for 5 V Gate Drive
Low Switching Losses
Low Inductance Package
RoHS Compliant
Halogen Free
Pb Free

VGS (V)	20
VDS (V)	30
Power loss (W)	2.1
Ploss current (A)	15
ID - continuous drain current at TA=25°C (A)	25
Operating temperature range (°C)	-55 to 150
Features	Power supply
Duty cycle (%)	Low
Rating	Catalog
