Описание

The CSD87384M NexFET™ Power Block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 5.0 mm × 3.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate drive from an external controller or driver.

Half-Bridge Power Block
90.5% System Efficiency at 25 A
Up to 30 A Operation

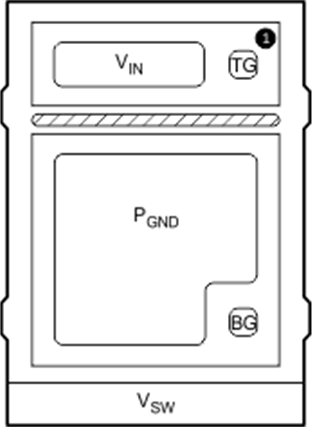

High Density – 5 mm × 3.5 mm LGA Footprint
Double-Side Cooling Capability
Ultra-Low Profile – 0.48 mm Max
Optimized for 5 V Gate Drive
Low Switching Losses
Ultra-Low Inductance Package
RoHS Compliant
Halogen Free
Pb-Free

VGS (V)	10
VDS (V)	30
Power loss (W)	3.7
Ploss current (A)	25
ID - continuous drain current at TA=25°C (A)	30
Operating temperature range (°C)	-55 to 150
Features	Power supply
Duty cycle (%)	Low
Rating	Catalog
