Описание

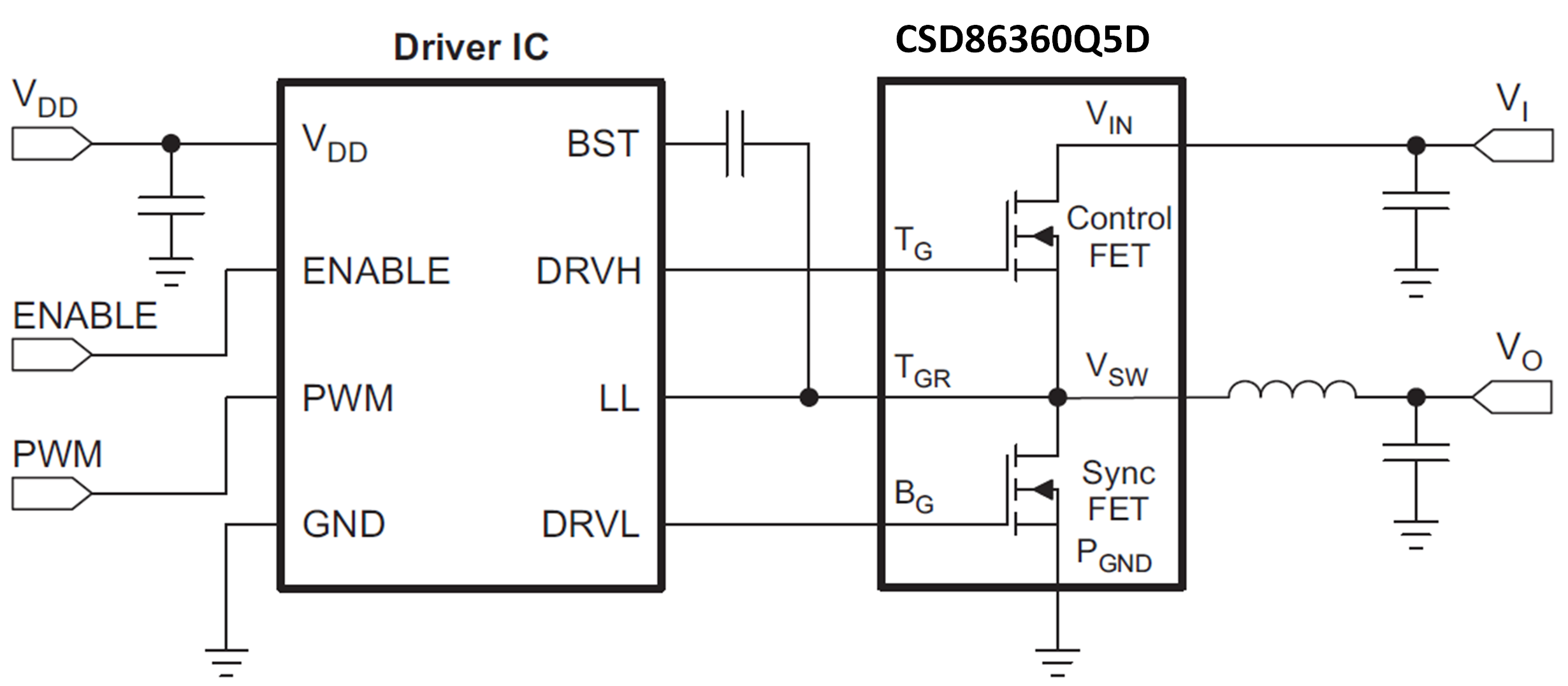

The CSD86360Q5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.

Half-Bridge Power Block
91% System Efficiency at 25 A
Up to 50-A Operation
High-Frequency Operation (Up to 1.5 MHz)
High-Density SON 5-mm × 6-mm Footprint
Optimized for 5-V Gate Drive
Low-Switching Losses
Ultra-Low-Inductance Package
RoHS Compliant
Halogen Free
Lead-Free Terminal Plating

VGS (V)	10
VDS (V)	25
Power loss (W)	2.6
Ploss current (A)	25
ID - continuous drain current at TA=25°C (A)	50
Operating temperature range (°C)	-55 to 150
Features	Power supply
Duty cycle (%)	Low
Rating	Catalog
