Описание

The SN75LVCP412CD is a dual channel, single lane SATA redriver and signal conditioner supporting data rates up to 3.0Gbps that complies with SATA spec revision 2.6. The SN75LVCP412CD operates from a single 3.3V supply. Integrated 100- line termination and self-biasing make the device suitable for AC coupling. The inputs incorporate an OOB detector which automatically turns the differential outputs off while maintaining a stable output common-mode voltage compliant to SATA link. The device is also designed to handle SSC transmission per SATA spec. The SN75LVCP412CD handles interconnect losses at both its input and output. The built-in transmitter pre-emphasis feature is capable of applying 0dB or 2.5dB of relative amplification at higher frequencies to counter the expected interconnect loss. On the receive side the device applies a fixed equalization of 7dB to boost input frequencies near 1.5GHz. Collectively, the input equalization and output pre-emphasis features of the device works to fully restore SATA signal integrity over extended cable and backplane pathways. The device is hot-plug capable(1) preventing device damage under device hot-insertion such as async signal plug/removal, un-powered plug/removal, powered plug/removal or surprise plug/removal.

Fully Integrated Cable Detect Feature Compliant with SATA 2.6 Spec
Enables System Power Savings of up to 200mW When HDD is Not
Detected at eSATA Connector
Low Device Power
- <200mW (Typ) in Active Mode
- <20mW (Typ) in Auto Low Power Mode
- <2mW (Max) in Standby Mode
Supports Common Mode Biasing for OOB Signaling with Fast Turn-On
Channel Selectable Output Pre-Emphasis
Excellent Jitter and Loss Compensation Capability to Over 20" FR4 Trace
High Protection Against ESD Transient
- HBM: 8,000V
- CDM: 1,500V
- MM: 200V

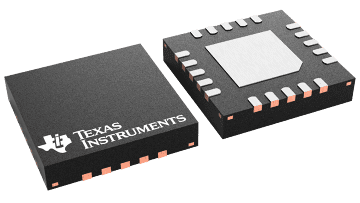

20 Pin QFN 4x4 Package
Pin Compatible to
LVCP412/LVCP412A
APPLICATIONS
- Notebooks, Desktops, Docking Stations, Servers and Workstations

⁽¹⁾ Requires use of AC coupling capacitors at differential inputs and outputs

Type	Redriver
Protocols	SAS1, SATA1
Applications	SATA Gen 2.6, eSATA
Number of channels	2
Speed (max) (Gbps)	3
Supply voltage (V)	3.3
Rating	Catalog
Operating temperature range (°C)	0 to 85
