Описание

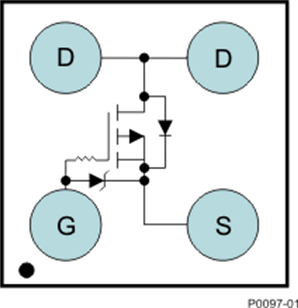

This 12 V, 44 mΩ device is designed to deliver the lowest on-resistance and gate charge in a small 1 mm × 1 mm outline with excellent thermal characteristics in an ultra-low profile.

VDS (V)	-12
VGS (V)	-6
Configuration	Single
Rds(on) at VGS=4.5 V (max) (mΩ)	53
Rds(on) at VGS=2.5 V (max) (mΩ)	66
Rds(on) at VGS=1.8 V (max) (mΩ)	92
Id peak (max) (A)	-25
Id max cont (A)	-2.2
QG (typ) (nC)	2.9
QGD (typ) (nC)	0.28
QGS (typ) (nC)	0.55
VGSTH typ (typ) (V)	-0.6
ID - silicon limited at TC=25°C (A)	2.2
Logic level	Yes
Operating temperature range (°C)	-55 to 150
Rating	Catalog
