Описание

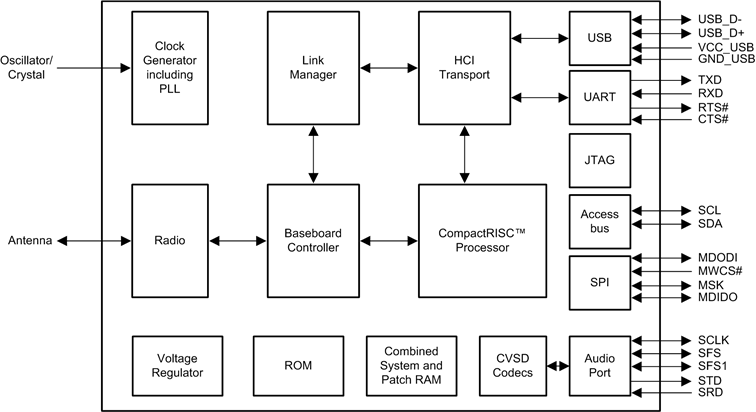

The LMX5453 is a highly integrated Bluetooth 2.0 compliant solution. The integrated baseband controller and 2.4 GHz radio combine to form a complete, small form-factor (6.1 mm × 9.1 mm × 1.2 mm) Bluetooth node. The on-chip memory, ROM, and Patch RAM provide lowest cost and minimize design risk with the flexibility of firmware upgrades. The firmware supplied in the on-chip ROM supports a complete Bluetooth Link Manager and HCI with communication through a UART or USB interface. This firmware features point-to-point and point-to-multipoint link management, supporting data rates up to 723 kbps. The radio employs an integrated antenna filter and switch to minimize the number of external components. The radio has a heterodyne receiver architecture with a low intermediate frequency (IF), which enables the IF filters to be integrated on-chip. The transmitter uses direct IQ-modulation with Gaussian-filtered bit-stream data, a voltage-controlled oscillator (VCO) buffer, and a power amplifier. The LMX5453 module is lead free and RoHS (Restriction of Hazardous Substances) compliant. For more information on those quality standards, please visit our green compliance website at ** http://www.national.com/quality/green/

The LMX5453 is a drop in replacement for the LMX5452.
The LMX5453 has new features added:

eSCO
eSCO over USB HCI transport
Enhanced scatternet
Interlaced scan
Flushing
Audio PCM slave mode support
Generic PCM configuration
Compliant with the Bluetooth 2.0 Core Specification
Better than –80 dBm input sensitivity
Class 2 operation
Low power consumption:
Accepts external clock or crystal input:
- Clocking option 12/13 MHz with PLL bypass mode for
  power reduction
- 10-20 MHz external clock or crystal network
- Secondary 32.768 kHz oscillator for low-power modes
- Advanced power management features
High integration:
- Implemented in 0.18 µm CMOS technology
- RF includes on-chip antenna filter and switch
On-chip firmware with complete HCI
Embedded ROM (200K) and Patch RAM (16.6K) memory
Up to 7 Asynchronous Connection Less (ACL) links
Support for two simultaneous voice or Extended
Synchronous Connection Oriented (eSCO) and
Synchronous Connection Oriented (SCO) and
links.
Enhanced scatternet
Interlaced scan
Flushing
Audio PCM slave mode support
Generic PCM configuration
Fractional-N Sigma/Delta modulator
Operating voltage range 2.5–3.6V
I/O voltage range 1.6–3.6V
60-pad micro-module BGA package (6.1 mm × 9.1 mm × 1.2 mm)

Operating temperature range (°C)	-40 to 85
Rating	Catalog
