Описание

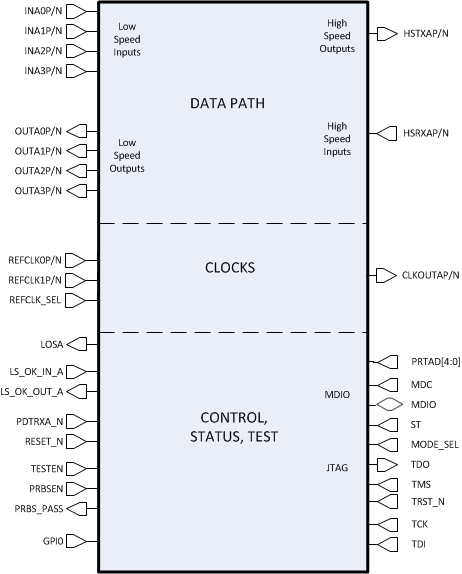

The TLK10031 is a single-channel multi-rate transceiver intended for use in high-speed bi-directional point-to-point data transmission systems. This device supports three primary modes. It can be used as a XAUI to 10GBASE-KR transceiver, as a general-purpose 8b/10b multi-rate 4:1, 2:1, or 1:1 serializer/deserializer, or can be used in 1G-KX mode.

Single Channel Multi-Rate Transceiver
Supports 10GBASE-KR, XAUI, and 1GBASE-KX Ethernet Standards
Supports all CPRI and OBSAI Data Rates up to 10 Gbps
Supports Multi-Rate SERDES Operation with up to 10.3125 Gbps Data Rate on the High Speed Side and up to 5 Gbps on the Low Speed Side
Differential CML I/Os on Both High Speed and Low Speed Sides
Interface to Backplanes, Passive and Active Copper Cables, or SFP+ Optical Modules
Selectable Reference Clock with Multiple Output Clock Options
Supports PRBS, CRPAT, CJPAT, High/Low/Mixed-Frequency Patterns, and KR Pseudo-Random Pattern Generation and Verification, Square-Wave Generation
Supports Data Retime Operation
Two Power Supplies: 1 V (Core), and 1.5 or 1.8 V (I/O)
No Power Supply Sequencing Requirements
Transmit De-emphasis and Receive Adaptive Equalization to Allow Extended Backplane/Cable Reach on Both High Speed and Low Speed Sides
Loss of Signal (LOS) Detection
Supports 10G-KR Link Training, Forward Error Correction, Auto-Negotiation
Jumbo Packet Support
JTAG; IEEE 1149.1 Test Interface
Industry Standard MDIO Control Interface
65nm Advanced CMOS Technology
Industrial Ambient Operating Temperature (–40°C to 85°C)
Power Consumption: 800 mW (Nominal)

Protocols	Catalog
Rating	Catalog
Operating temperature range (°C)	-40 to 85
