Описание

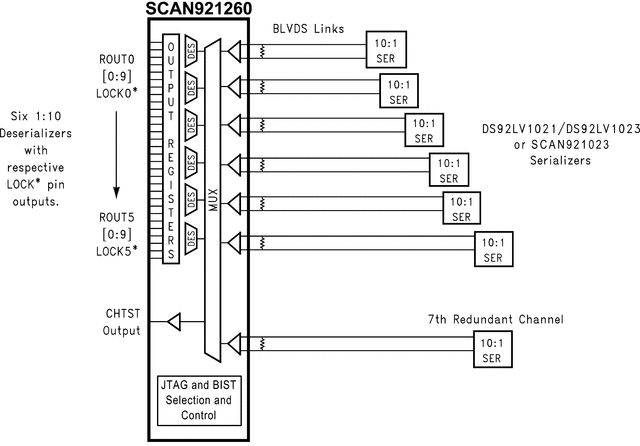

The SCAN921260 integrates six deserializer devices into a single chip. The SCAN921260 can simultaneously deserialize up to six data streams that have been serialized by the Texas Instruments SCAN921023 Bus LVDS serializer. The device also includes a seventh serial input channel that serves as a redundant input. Each deserializer block in the SCAN921260 operates independently with its own clock recovery circuitry and lock-detect signaling. The SCAN921260 uses a single +3.3V power supply with an estimated power dissipation of 1.2W at 3.3V with a PRBS-15 pattern. Refer to the Connection Diagrams for packaging information.

IEEE 1149.1 (JTAG) Compliant and At-Speed BIST Test Modes
Deserializes One to Six BusLVDS Input Serial Data Streams With Embedded Clocks
Seven Selectable Serial Inputs to Support N+1 Redundancy of Deserialized Streams
Seventh Channel Has Single Pin Monitor Output That Reflects Input From Seventh Channel Input
Parallel Clock Rate Up To 66 MHz
On Chip Filtering for PLL
High Impedance Inputs Upon Power Off (V_cc = 0V)
Single Power Supply at +3.3V
196-Pin NFBGA Package (Low-Profile Ball Grid Array) Package
Industrial Temperature Range Operation: −40 to +85

All trademarks are the property of their respective owners.

Protocols	Catalog
Rating	Catalog
Operating temperature range (°C)	-40 to 85
