Описание

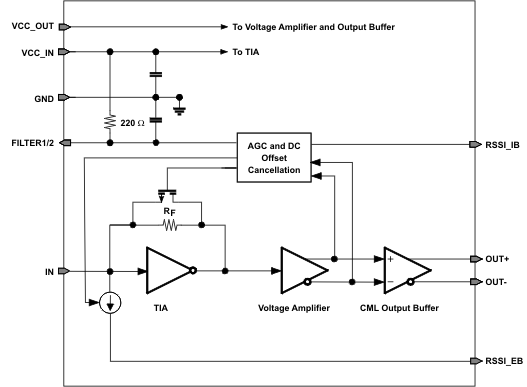

The ONET8531T is a high-speed and high-gain limiting-transimpedance amplifier, used in optical receivers with data rates up to 12.5 Gbps. It features low input referred noise, 10 GHz bandwidth, 4.5 kΩ small signal transimpedance, and a received signal strength indicator (RSSI). The ONET8531T is available in die form, includes an on-chip VCC bypass capacitor and is optimized for packaging in a TO can. The ONET8531T requires a single +3.3V ± 10% supply and its power efficient design typically dissipates less than 105 mW. The device is characterized for operation from –40°C to 100°C case (IC back side) temperature.

10 GHz Bandwidth
4.5 kΩ Differential Small Signal Transimpedance
2.5 mA_p-p Input Overload Current
Received Signal Strength Indication (RSSI)
100 mW Typical Power Dissipation
CML Data Outputs With On-Chip 50 Ω Back-Termination
On Chip Supply Filter Capacitor
Single 3.3 V Supply
Die Size: 940 × 1195 µm
Case temperature operation: –40°C to 100°C
APPLICATIONS
- SONET OC-192
- SFP+ Optical Receivers
- 10× Fibre Channel Optical Receivers
- 10G Ethernet Receivers
- PIN Preamplifier-Receivers
- APD Preamplifier Receivers

Type	Transimpedance and limiting amplifier
Data rate (max) (MBits)	11300
Supply current (typ) (µA)	28000
Supply current (max) (µA)	44000
Deterministic jitter (typ) (ps)	6
Operating temperature range (°C)	-40 to 100, 0 to 0
