Описание

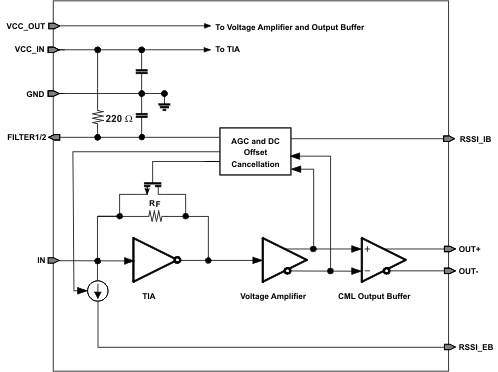

The ONET8501T is a high-speed, high gain, limiting transimpedance amplifier used in optical receivers with data rates up to 12.5Gbps. It features low input referred noise, 10GHz bandwidth, 7kΩ small signal transimpedance, and a received signal strength indicator (RSSI). The ONET8501T is available in die form, includes an on-chip VCC bypass capacitor and is optimized for packaging in a TO can. The ONET8501T requires a single 3.3V ±10% supply and its power efficient design typically dissipates less than 105mW. The device is characterized for operation from –40°C to 100°C case (IC back side) temperature.

10 GHz Bandwidth
7 kΩ Differential Small Signal Transimpedance
2.5 mA_PP Input Overload Current
Received Signal Strength Indication (RSSI)
100mW Typical Power Dissipation
CML Data Outputs With On-Chip 50Ω Back-Termination
On Chip Supply Filter Capacitor
Single 3.3V Supply
Die Size: 940 × 1195 µm
APPLICATIONS
- SONET OC-192
- SFP+ Optical Receivers
- 10x Fibre Channel Optical Receivers
- 10G Ethernet Receivers
- PIN Preamplifier-Receivers
- APD Preamplifier Receivers

Rating	Catalog
Operating temperature range (°C)	-40 to 100
