Описание

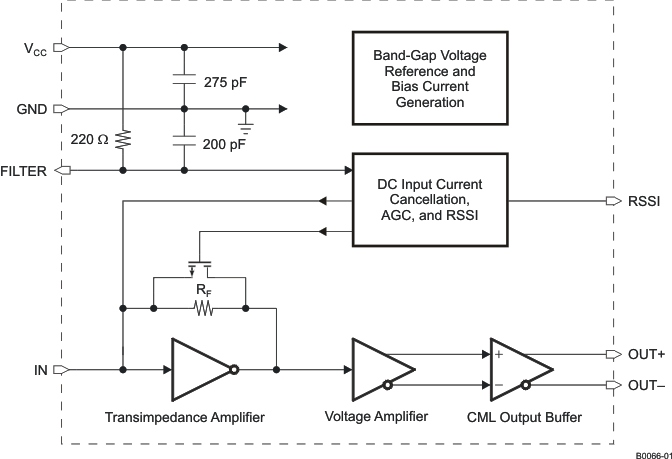

The ONET4291T is a high-speed transimpedance amplifier used in optical receivers with data rates up to 4.25 Gbps. It features a low input referred noise, 2.8-GHz bandwidth, automatic gain control (AGC), 3.2-kΩ transimpedance, and received signal strength indication (RSSI). The ONET4291T is available in die form and is optimized for use in a TO can. The ONET4291T requires a single 3.3-V supply, and its power-efficient design typically dissipates less than 56 mW. The device is characterized for operation from –40°C to 85°C ambient temperature.

2.8-GHz Bandwidth
3.2-kΩ Differential Transimpedance
Automatic Gain Control (AGC)
8.8-pA/√Hz Typical Input Referred Noise
2-mA_p-p Maximum Input Current
Received Signal Strength Indication (RSSI)
CML Data Outputs With On-Chip 50-Ω Back-Termination
On-Chip Supply Filter Capacitor
Single 3.3-V Supply
Die Size: 0,78 × 1,18 mm
APPLICATIONS
- SONET/SDH Transmission Systems at OC24 and OC48
- 4.25-Gbps, 2.125-Gbps, and 1.0625-Gbps Fiber-Channel Receivers
- Gigabit Ethernet Receivers
- PIN Preamplifier-Receivers

Rating	Catalog
Operating temperature range (°C)	-40 to 85
