Описание

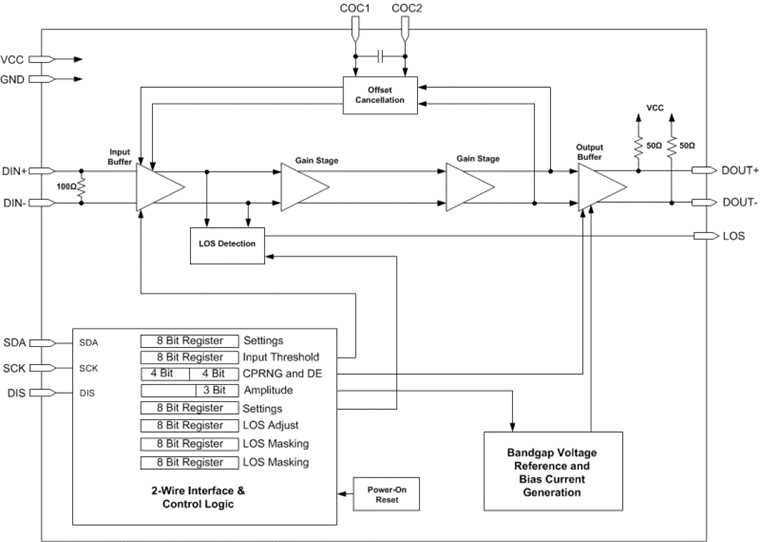

The ONET1151P is a high-speed, 3.3-V limiting amplifier for multiple fiber optic and copper cable applications with data rates up to 11.3 Gbps. The device provides a two-wire serial interface which allows digital control of the output amplitude, output pre-emphasis, input threshold voltage (slice level) and the loss of signal assert level. The ONET1151P provides a gain of about 33dB which ensures a fully differential output swing for input signals as low as 20 mVp-p. The output amplitude can be adjusted between 350 mVp-p and 850 mVp-p. To compensate for frequency dependent loss of microstrips or striplines connected to the output of the device, programmable de-emphasis is included in the output stage. A settable loss of signal (LOS) detection with programmable output masking time and output disable are also provided. The part, available in RoHS compliant small footprint 3 mm × 3 mm 16-pin QFN package, typically dissipates 132 mW with 550 mVp-p output and is characterized for operation from −40°C to 100°C.

Up to 11.3 Gbps Operation
Two-Wire Digital Interface
Adjustable LOS Threshold
Digitally Selectable Output Voltage
Digitally Selectable Output De-Emphasis
Adjustable Input Threshold Voltage
Output Polarity Select
Programmable LOS Masking Time
Input Offset Cancellation
CML Data Outputs with On-Chip 50-Ω
Back-Termination to VCC
Single +3.3-V Supply
Low Power Consumption
Output Disable
Surface Mount Small Footprint 3 mm × 3 mm
16-Pin RoHS Compliant QFN Package
Pin Compatible to the ONET8501PB

Type	Limiting amplifier
Data rate (max) (MBits)	11300
Features	Disable, LOS, OUTPOL, Output voltage select
Supply current (typ) (µA)	42000
Supply current (max) (µA)	52000
Deterministic jitter (typ) (ps)	3
Operating temperature range (°C)	-40 to 100
