Описание

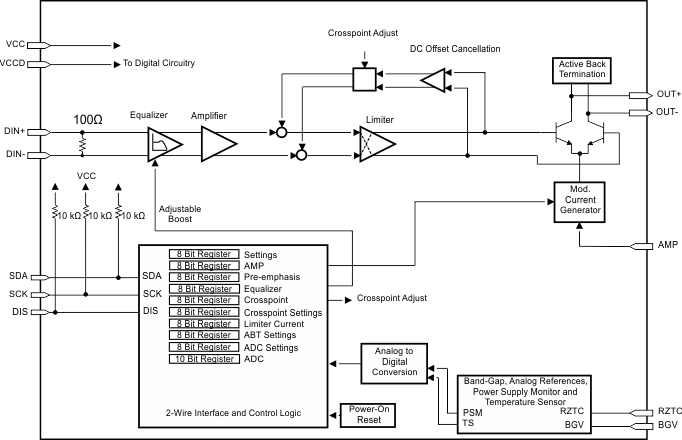

The ONET1151M is a high-speed, 3.3-V modulator driver designed to modulate a differentially driven Mach Zehnder Modulator at data rates from 1 Gbps up to 11.35 Gbps. The output amplitude can be controlled with an externally applied voltage. A 2-wire serial interface allows digital control of the equalizer, output pre-emphasis, eye crossing point, rise and fall times, and the amplitude, eliminating the need for external components. Output waveform control, in the form of pre-emphasis, cross-point adjustment and rise and fall time adjustment are available to improve the optical eye mask margin. An optional input equalizer with 10 dB of boost at 5 GHz can be used for equalization of up to 300-mm (12 in.) of microstrip or stripline transmission line on FR4 printed circuit boards. The modulator driver is characterized for operation from –40°C to 100°C case temperature and is available in a small footprint 3-mm × 3-mm 16-pin RoHS compliant QFN package.

1.5-V_PP Single-Ended Output Voltage into a 50-Ω Load
Programmable Input Equalizer
Output Pre-emphasis
Adjustable Rise and Fall Times
Cross-Point Control
Output Polarity Select
2-Wire Digital Interface
Single 3.3-V Supply
–40°C to 100°C Operation
Surface Mount 3-mm x 3-mm 16-Pin RoHS Compliant QFN Package

Type	Laser driver
Data rate (max) (MBits)	11350
Features	2-wire digital interface control, Adjustable rise and fall times, Cross-point control, Input equalizer, Output polarity select
Supply current (typ) (µA)	100000
Imod (A)	1.5Vpp SE
Supply current (max) (µA)	100000
Deterministic jitter (typ) (ps)	5
Operating temperature range (°C)	-40 to 100
