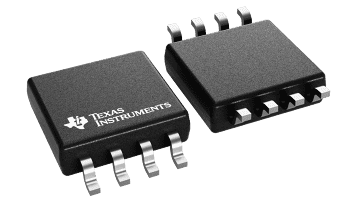

SN74AUC2G02 Texas instruments

SN74AUC2G02

Уточнить цену

SN74AUC2G02

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

This dual 2-input positive-NOR gate is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation. The SN74AUC2G02 performs the Boolean function Y = A + B or Y = A B in positive logic. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial Power-Down-Mode Operation
Sub-1-V Operable
Max t_pd of 1.8 ns at 1.8 V
Low Power Consumption, 10 µA at 1.8 V
±8-mA Output Drive at 1.8 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

NanoFree is a trademark of Texas Instruments.

Technology family	AUC
Number of channels	2
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	2.7
Inputs per channel	2
IOL (max) (mA)	9
IOH (max) (mA)	-9
Output type	Push-Pull
Input type	Standard CMOS
Features	Over-voltage tolerant Inputs, Partial power down (Ioff), Ultra high speed (tpd
Data rate (max) (MBits)	250
Rating	Catalog
Operating temperature range (°C)	-40 to 85
