SN54LS244-SP Texas instruments

SN54LS244-SP

Уточнить цену

SN54LS244-SP

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

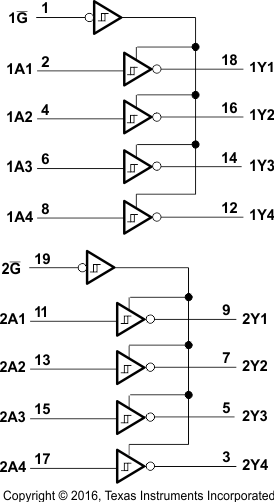

The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and non-inverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133 Ω.

Inputs Tolerant Down to 2 V, Compatible With 3.3-V or 2.5-V Logic Inputs
Maximum t_pd of 15 ns at 5 V
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
PNP Inputs Reduce DC Loading
Hysteresis at Inputs Improves Noise Margins

Technology family	LS
Supply voltage (min) (V)	4.5
Supply voltage (max) (V)	5.5
Number of channels	8
IOL (max) (mA)	24
Supply current (max) (µA)	46000
IOH (max) (mA)	-15
Input type	Bipolar
Output type	3-State
Features	High speed (tpd 10-50ns)
Rating	Space
Operating temperature range (°C)	-55 to 125
