Описание

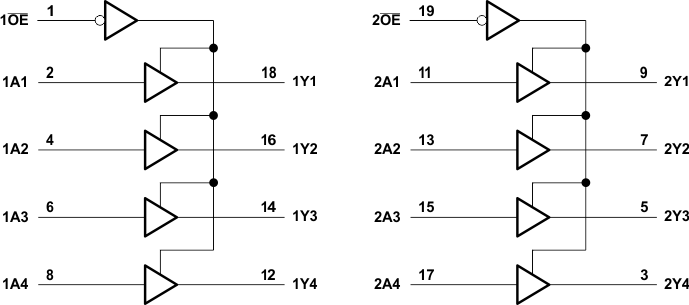

These octal buffers and drivers are designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.

Operating Range 2-V to 5.5-V V_CC
Latch-Up Performance Exceeds 250 mA Per JESD 17
On Products Compliant to MIL-PRF-38535, All Parameters
Are Tested Unless Otherwise Noted. On All Other Products,
Production Processing Does Not Necessarily Include
Testing of All Parameters.

Technology family	AHC
Supply voltage (min) (V)	2
Supply voltage (max) (V)	5.5
Number of channels	8
IOL (max) (mA)	8
Supply current (max) (µA)	40
IOH (max) (mA)	-8
Input type	Standard CMOS
Output type	3-State
Features	Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)
Rating	Space
Operating temperature range (°C)	-55 to 125
