SN65HVS883 Texas instruments

SN65HVS883

Уточнить цену

SN65HVS883

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

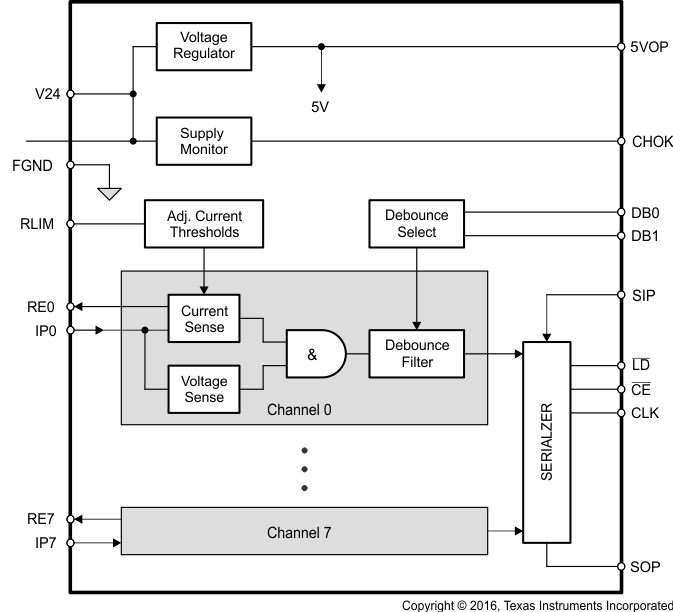

The SN65HVS883 is a 24-V, eight-channel, digital-input serializer for high-channel density digital input modules of PC and PLC-based systems in industrial automation. In combination with galvanic isolators, the device completes the interface between the 24-V sensor outputs of the field-side and the low-voltage controller inputs at the control-side. Input signals provided by EN60947-5-2 compliant 2-wire and 3-wire proximity switches are current-limited and then validated by internal debounce filters. The input switching characteristic is in accordance with IEC61131-2 for Type 1, 2, and 3 sensor switches. Upon the application of load and clock signals, input data is latched in parallel into the shift register and afterwards clocked out serially via a subsequent isolator into a serial PLC input. Cascading of multiple SN65HVS883 is possible by connecting the serial output of the leading device with the serial input of the following device, enabling the design of high-channel count input modules. Input status is indicated via 3-mA constant current LED outputs. An external precision resistor is required to set the internal reference current. The integrated voltage regulator provides a 5-V output to supply low-power isolators. An internal supply voltage monitor provides a chip-okay (CHOK) indication. The SN65HVS883 comes in a 28-pin PWP PowerPAD™ package allowing for efficient heat dissipation. The device is specified for operation at temperatures from –40°C to 85°C.

Eight Sensor Inputs
- High Input Voltage up to 34 V
- Selectable Debounce Filters From 0 ms to 3 ms
- Adjustable Current Limits From 0.2 mA to 5.2 mA
- Field Inputs and Supply Lines Protected to 15-kV HBM
Output Drivers for External Status LEDs
Cascadable for More Inputs in Multiples of Eight
SPI-Compatible Interface
Regulated 5-V Output for External Digital Isolator
Low-Supply Voltage Indicator

Number of input channels	8
Operating voltage (min) (V)	10
Operating voltage (max) (V)	34
Input/ouput voltage (max) (V)	36
Input/ouput voltage (min) (V)	-0.3
IO current (mA)	0.2 to 5.2
Operating temperature range (°C)	-40 to 85
Interface type	SPI
Features	Voltage monitoring
Diagnostics	Voltage monitoring diagnostics
Logic voltage (min) (V)	2
Logic voltage (max) (V)	0.8
Rating	Catalog
