Описание

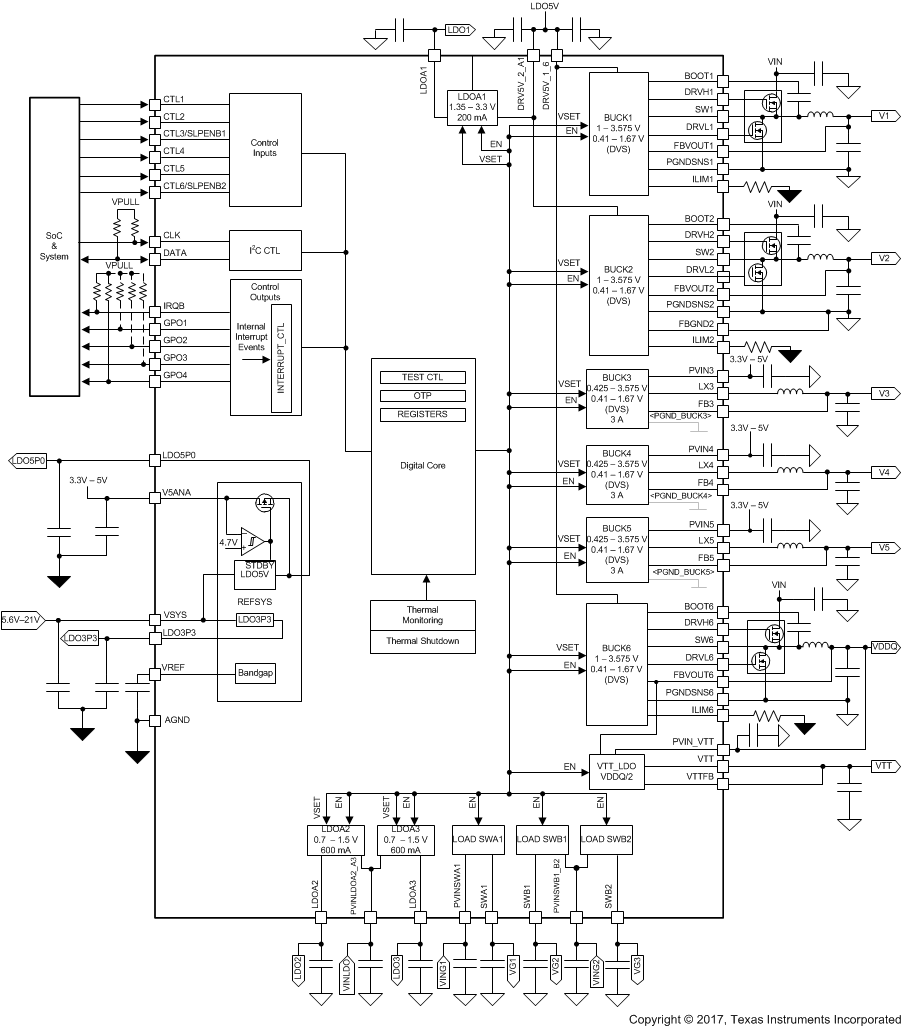

The TPS650861 device family is a single-chip power-management IC (PMIC) designed to be programmed for optimal output voltages and sequencing. The TPS650861 has three controllers to provide flexible power capable of up to 30A with large external FETs for high power designs but which can scale down in both size and cost for smaller designs. Combined with three 3 A converters, three general purpose LDOs, a termination LDO for DDR, and three load switches, the TPS650861 can provide system power for a wide variety of applications. The D-CAP2™ and DCS-Control high-frequency voltage regulators use small passives to achieve a small solution size. The D-CAP2 and DCS-Control topologies have excellent transient response performance, ideal for processor core and system memory rails that have fast load switching. The device has two banks of one-time programmable (OTP) memory. For large volume opportunities, please contact a local TI sales representative to determine if use of TIs manufacturing for a custom OTP is available. Third party distributors may also support programming of the TPS650861.

Two Banks of One-Time Programmable Memory for Programming Default Voltages and Sequence
Wide V_IN Range From 5.6 V to 21 V
Three Variable-Output Voltage Synchronous
Step-Down Controllers With D-CAP2™ Topology
- Scalable Output Current Using External FETs With Selectable Current Limit
- I²C DVS Control From 0.41 V to 1.67 V in
  10-mV Steps or 1 V to 3.575 V in 25-mV Steps or Fixed 5 V Output
Three Variable-Output Voltage Synchronous Step-Down Converters With DCS-Control Topology
- V_IN Range From 3 V to 5.5 V
- Up to 3 A of Output Current
- I²C DVS Control From 0.425 V to 3.575 V in 25-mV Steps
Three LDO Regulators With Adjustable Output Voltage
- LDOA1: I²C-Selectable Voltage From 1.35 V to 3.3 V for up to 200 mA of Output Current
- LDOA2 and LDOA3: I²C-Selectable Voltage From 0.7 V to 1.5 V for up to 600 mA of Output Current Each
VTT LDO for DDR Memory Termination
Three Load Switches With Slew Rate Control
- Up to 300 mA of Output Current With Voltage Drop Less Than 1.5% of Nominal Input Voltage
- R_DSON < 96 mΩ at Input Voltage of 1.8 V
5-V Fixed-Output Voltage LDO (LDO5)
- Power Supply for Gate Drivers of SMPS and for LDOA1
- Automatic Switch to External 5-V Buck for Higher Efficiency
Built-in Flexibility and Configurability by OTP Programming
- Six GPI Pins Configurable to Enable (CTL1 to CTL6) or Sleep Mode Entry (CTL3 and CTL6) of Any Selected Rails
- Four GPO Pins Configurable to Power Good of Any Selected Rails
- Open-Drain Interrupt Output Pin
I²C Interface Supports Standard Mode (100 kHz), Fast Mode (400 kHz), and Fast Mode Plus (1 MHz)

Regulated outputs (#)	13
Vin (min) (V)	5.6
Vin (max) (V)	21
Iout (max) (A)	25
Rating	Catalog
Step-down DC/DC controller	3
Step-down DC/DC converter	3
Step-up DC/DC controller	0
Step-up DC/DC converter	0
LDO	4
Iq (typ) (mA)	0.3
Switching frequency (max) (kHz)	3100
Features	Comm control, Dynamic voltage scaling, Enable, Enable pin, I2C control, Overcurrent protection, Power good, Power sequencing, Synchronous rectification, Thermal shutdown, UVLO fixed
Operating temperature range (°C)	-40 to 85
Processor name	Generic
Processor supplier	Generic
Shutdown current (ISD) (typ) (µA)	65
Switching frequency (typ) (kHz)	2500
Configurability	Software configurable, User programmable
