Описание

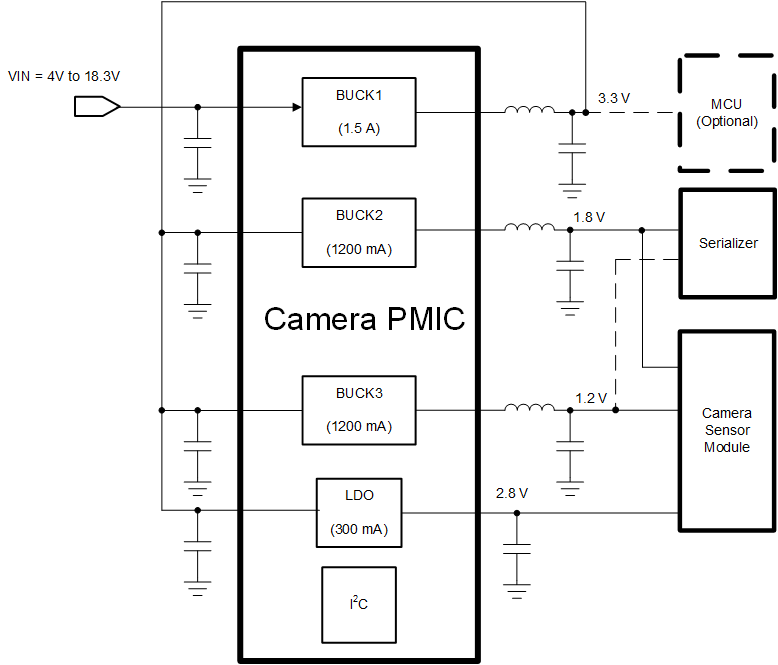

The TPS650330-Q1 device is a highly integrated power management IC for automotive camera modules. This device combines three step-down converters and one low-dropout (LDO) regulator. The BUCK1 step-down converter has an input voltage range up to 18.3 V for connections to power over coax (PoC). All converters operate in a forced fixed-frequency PWM mode. The LDO can supply 300 mA and operate with an input voltage range from 2.5 V to 5.5 V. The step-down converters and the LDO have separate voltage inputs that enable maximum design and sequencing flexibility.The TPS650330-Q1 is available in a 24-pin VQFN package (4.00 mm × 4.00 mm).

Qualified for automotive applications
AEC-Q100 grade 1 qualified
- -40°C to +125°C ambient operating temperature range
Three step-down converters:
- BUCK1 V_IN range from 4.0 V to 18.3 V
- BUCK1 V_OUT range from 2.5 V to 4.0 V
- BUCK1 output current up to 1500-mA
- BUCK2 and BUCK3 V_IN range from 2.5 V to 5.5 V
- BUCK2 and BUCK3 V_OUT range from 0.9 V to 1.9 V
- BUCK2 and BUCK3 output current up to 1200-mA
- Spread-spectrum clock (SSC) generation for reduced EMI
- 2.3-MHz forced fixed switching frequency PWM operation
One low dropout (LDO) regulator:
- V_IN range from 2.5 V to 5.5 V
- V_OUT range from 1.8 V to 3.3 V
- Low noise and high PSRR
- Adjustable output voltage through I²C
- Up to 300-mA output current
4.0-mm × 4.0-mm 24-pin VQFN with wettable flanks

Regulated outputs (#)	4
Vin (min) (V)	4
Vin (max) (V)	18.3
Iout (max) (A)	1.5
Rating	Automotive
Step-down DC/DC converter	3
Step-up DC/DC controller	0
LDO	1
Iq (typ) (mA)	0.1
Switching frequency (max) (kHz)	2300
Features	I2C control, Overcurrent protection, Power good, Power sequencing, Power supply and system monitoring, Spread-Spectrum Clock (SSC) Generation, Thermal shutdown, UVLO fixed
Operating temperature range (°C)	-40 to 125
Switching frequency (typ) (kHz)	2180
Configurability	Factory programmable, Software configurable, User programmable
