Описание

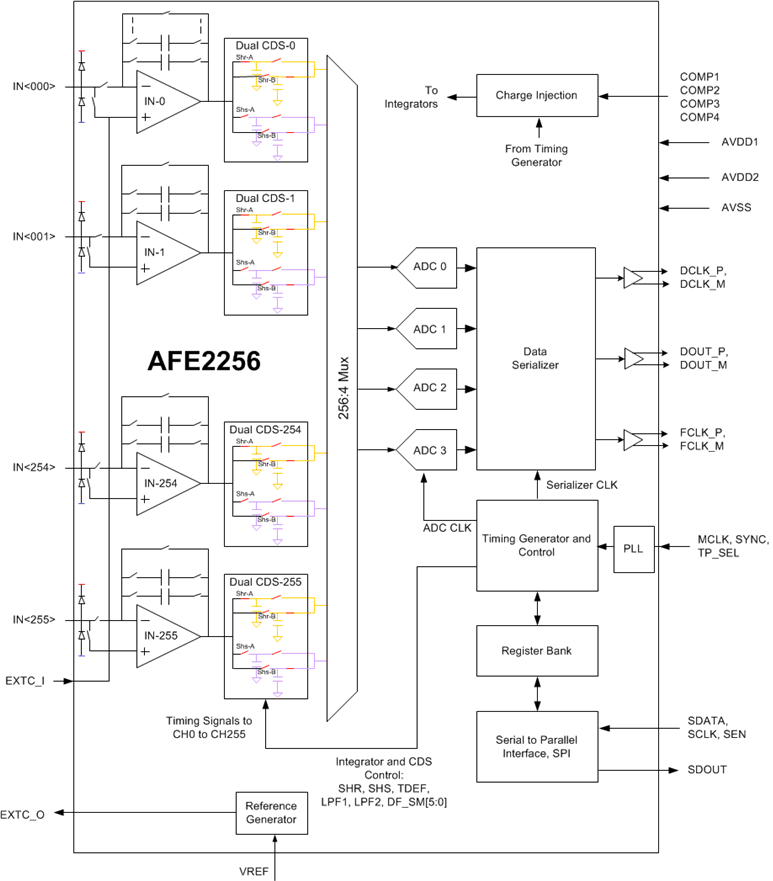

The AFE2256 is a 256-channel, analog front-end (AFE) designed to suit the requirements of flat-panel detector (FPD)-based digital x-ray systems. The device includes 256 integrators , a programmable gain amplifier (PGA) for full-scale charge level selection, a correlated double sampler (CDS) with dual banking, and 256:4 analog multiplexers. The device also features four 16-bit successive-approximation register (SAR) analog-to-digital converters (ADCs). Serial data from the ADCs are available in low-voltage differential signaling (LVDS) format. The Nap and power-down modes enable substantial power saving that is especially useful in battery-powered systems. To request a full datasheet or other design resources: request AFE2256

256 Channels
On-Chip, 16-Bit ADC
Photodiode Short Immunity
High Performance:
- Noise: 750 Electrons RMS
  (1.2-pC Input Charge Range)
- Low Correlated Noise
- Integral Nonlinearity:
  ±2 LSB with Internal 16-Bit ADC
- Scan Time:
  - < 20 µs to 204.8 µs
Integration:
- Six Selectable, Full-Scale Input Ranges:
  0.6 pC (Min) to 9.6 pC (Max)
- Internal Timing Generator (TG)
- Built-In Correlated Double Sampler
- Pipelined Integrate and Read for Improved
  Throughput: Allows Data Read During
  Integration
- Serial LVDS Output
Simple Power-Supply Scheme:
- AVDD1 = 1.85 V
- AVDD2 = 3.3 V
Low Power Consumption
Nap and Total Power-Down Mode
Custom Chip-On-Film (COF) Packages

Number of input channels	256
Resolution (Bits)	16
Features	Internal Reference Buffer, Nap Mode, Power Down, X-ray
Interface type	SPI/LVDS
Operating temperature range (°C)	0 to 85
Rating	Catalog
