SCAN90004 Texas instruments

SCAN90004

Уточнить цену

SCAN90004

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

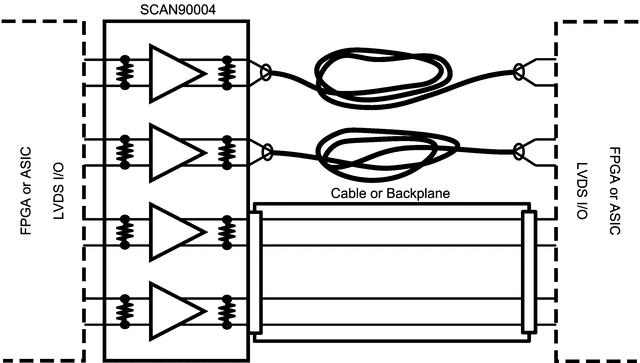

The SCAN90004 is a four channel 1.5 Gbps LVDS buffer/repeater. High speed data paths and flow-through pinout minimize internal device jitter and simplify board layout, while configurable pre-emphasis overcomes ISI jitter effects from lossy backplanes and cables. The differential inputs interface to LVDS, and Bus LVDS signals such as those on TI's 10-, 16-, and 18- bit Bus LVDS SerDes, as well as CML and LVPECL. The differential inputs and outputs are internally terminated with a 100Ω resistor to improve performance and minimize board space. The repeater function is especially useful for boosting signals for longer distance transmission over lossy cables and backplanes. Integrated testability circuitry supports IEEE1149.1 (JTAG) on single-ended LVTTL/CMOS I/O and limited IEEE1149.6 capability on high-speed differential LVDS interconnects. The 3.3V supply, CMOS process, and LVDS I/O ensure stable high performance at low power over the entire industrial -40 to +85°C temperature range.

1.5 Gbps Maximum Data Rate Per Channel
Configurable Pre-emphasis Drives Lossy Backplanes and Cables
Low Output Skew and Jitter
LVDS/CML/LVPECL Compatible Input, LVDS Output
On-chip 100Ω Input and Output Termination
12 kV ESD Protection on LVDS Outputs
IEEE 1149.1 JTAG Interface
IEEE 1149.6 Limited Capability
Fault Insertion
Single 3.3V Supply
Very Low Power Consumption
Industrial -40 to +85°C Temperature Range
Small TQFP Package Footprint
See DS90LV004 for Non-JTAG Version

All trademarks are the property of their respective owners.

Function	Buffer
Protocols	BLVDS, CML, LVDS, LVPECL
Number of transmitters	4
Number of receivers	4
Supply voltage (V)	3.3
Signaling rate (MBits)	1500
Input signal	CML, LVDS, LVPECL
Output signal	LVDS
Rating	Catalog
Operating temperature range (°C)	-40 to 85
