Описание

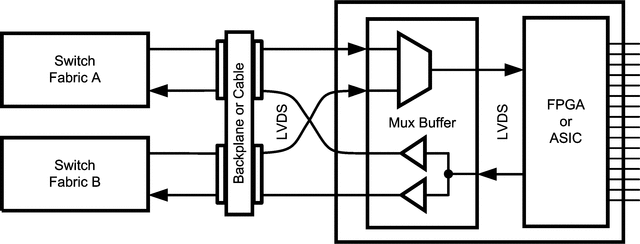

The SCAN15MB200 is a dual-port 2 to 1 multiplexer and 1 to 2 repeater/buffer. High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout, while pre-emphasis overcomes ISI jitter effects from lossy backplanes and cables. The differential inputs and outputs interface to LVDS or Bus LVDS signals such as those on TI's 10-, 16-, and 18- bit Bus LVDS SerDes, or to CML or LVPECL signals. Integrated IEEE 1149.1 (JTAG) and 1149.6 circuitry supports testability of both single-ended LVTTL/CMOS and high-speed differential PCB interconnects. The 3.3V supply, CMOS process, and robust I/O ensure high performance at low power over the entire industrial -40 to +85°C temperature range.

1.5 Gbps Data Rate Per Channel
Configurable Off/On Pre-emphasis Drives Lossy Backplanes and Cables
LVDS/BLVDS/CML/LVPECL Compatible Inputs, LVDS Compatible Outputs
Low Output Skew and Jitter
On-chip 100Ω Input and Output Termination
IEEE 1149.1 and 1149.6 Compliant
15 kV ESD Protection on LVDS Inputs/Outputs
Hot Plug Protection
Single 3.3V Supply
Industrial -40 to +85°C Temperature Range
48-Pin WQFN Package

All trademarks are the property of their respective owners.

Function	Mux buffer
Protocols	BLVDS, CML, LVDS, LVPECL
Number of transmitters	2, 4
Number of receivers	2, 4
Supply voltage (V)	3.3
Signaling rate (MBits)	1500
Input signal	BLVDS, CML, LVDS, LVPECL
Output signal	LVCMOS, LVDS
Rating	Catalog
Operating temperature range (°C)	-40 to 85
